249D3 Compact Track Loader

360 View Video

Product Description

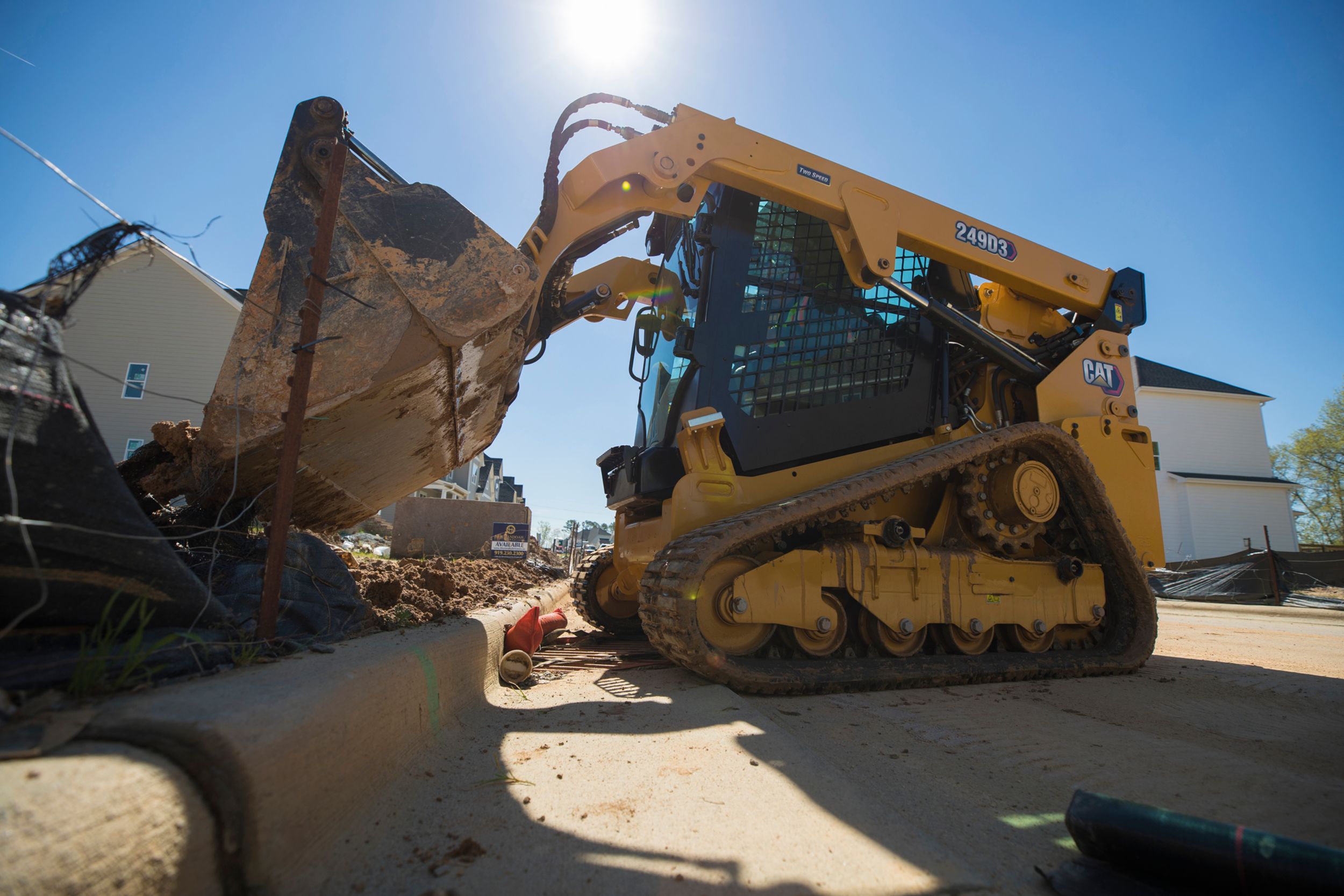

The Cat® 249D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Specifications
Us
Metric
Engine
Gross Power - SAE J1995
67.1 hp
50.1 kW
Operating Specifications
Rated Operating Capacities - 35% Tipping Load
1740 lb
790 kg
Weights
Operating Weight
7831 lb
3552 kg
Operating Specifications
Tipping Load
4970 lb
2260 kg
Dimensions
Length - Track on Ground
54.5 in
1384 mm
Overall Length - Track
71.2 in
1808 mm
Height - Top of Cab
80.3 in
2039 mm
Ground Clearance
7.6 in
194 mm
Departure Angle
34.5°
Maximum Dump Angle
48°
Vehicle Width (400 mm/15.7 in tracks)
69.1 in
1756 mm
Length - With Bucket on Ground
127.3 in
3233 mm
Operating Specifications
Ground Contact Area - With 320 mm/12.6 in Track
1373 in²
0.89 m²
Dimensions
Maximum Overall Height
150.8 in
3831 mm
Bucket Pin Height - Carry Position
8.6 in
219 mm
Maximum Reach - With Arms Parallel to Ground
51.8 in
1317 mm
Length - Without Bucket
99.3 in
2523 mm
Turning Radius from Center - Machine Rear
57.4 in
1458 mm
Operating Specifications
Ground Pressure - With 320 mm/12.6 in Track
5.7 psi
39.3 kPa
Dimensions
Bucket Pin Height - Maximum Lift
118.2 in
3002 mm
Clearance at Maximum Lift and Dump
88.7 in
2253 mm
Vehicle Width (320 mm/12.6 in tracks)
66 in
1676 mm
Turning Radius from Center - Coupler
45.7 in
1160 mm
Reach - Maximum Lift/Dump
28.6 in
727 mm
Rack Back Angle - Maximum Height
87.5°
Turning Radius from Center - Bucket
81.1 in
2060 mm
Hydraulic System
Hydraulic Flow - Standard - Loader Hydraulic Pressure
3336 psi
23000 kPa
Hydraulic Flow - High Flow - Loader Hydraulic Flow
26 gal/min
99 l/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
3336 psi
23000 kPa
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
50.9 hp
38 kW
Hydraulic Flow - Standard - Loader Hydraulic Flow
18 gal/min
69 l/min
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
35.5 hp
26.5 kW
Cab
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
Power Train
Travel Speed - Forward or Reverse - One Speed
5 mile/h
8.1 km/h
Travel Speed - Forward or Reverse - Two Speed
7.6 mile/h
12.2 km/h
Service Refill Capacities
Engine Crankcase
2.6 gal (US)
10 l
Fuel Tank
15.1 gal (US)
57 l
Hydraulic System
11.9 gal (US)
45 l
Cooling System
3.2 gal (US)
12 l
Hydraulic Tank
9 gal (US)
34 l
Engine
Displacement
134.3 in³
2.2 l
Bore
3.3 in
84 mm
Stroke
3.9 in
100 mm
Net Power - ISO 9249
66.5 hp
49.6 kW
Net Power
65.8 hp
49.1 kW
Net Power - SAE 1349
65.8 hp
49.1 kW
Operating Specifications
Breakout Force - Tilt Cylinder
3907 lb
1772 kg
Dimensions
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Engine
Peak Torque - 1,500 rpm - SAE J1995
153 ft·lbf
208 N·m
Dimensions
Bucket Pin Reach - Maximum Lift
12.2 in
311 mm
Operating Specifications
Ground Contact Area - With 400 mm/15.7 in Track
1716 in²
1.11 m²
Engine
Engine Model
Cat C2.2 CRDI
Noise Level
Outside Cab***
103 dB(A)
103 dB(A)
Inside Cab**
83 dB(A)
83 dB(A)
Weights
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Operating Specifications
Ground Pressure - With 400 mm/15.7 in Track
4.7 psi
32.2 kPa
Noise Level
Note (3)
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Operating Specifications
Rated Operating Capacities - 50% Tipping Load
2485 lb
1130 kg
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Noise Level
Note (2)
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Operating Specifications
Rated Operating Capacity with Optional Counterweight
2700 lb
1225 kg
Noise Level
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Air Conditioning System (if equipped)
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Standard/Optional

Standard Equipment

ELECTRICAL
OPERATOR ENVIRONMENT
POWER TRAIN
OTHER
MANDATORY EQUIPMENT

Optional Equipment

OPTIONAL EQUIPMENT
