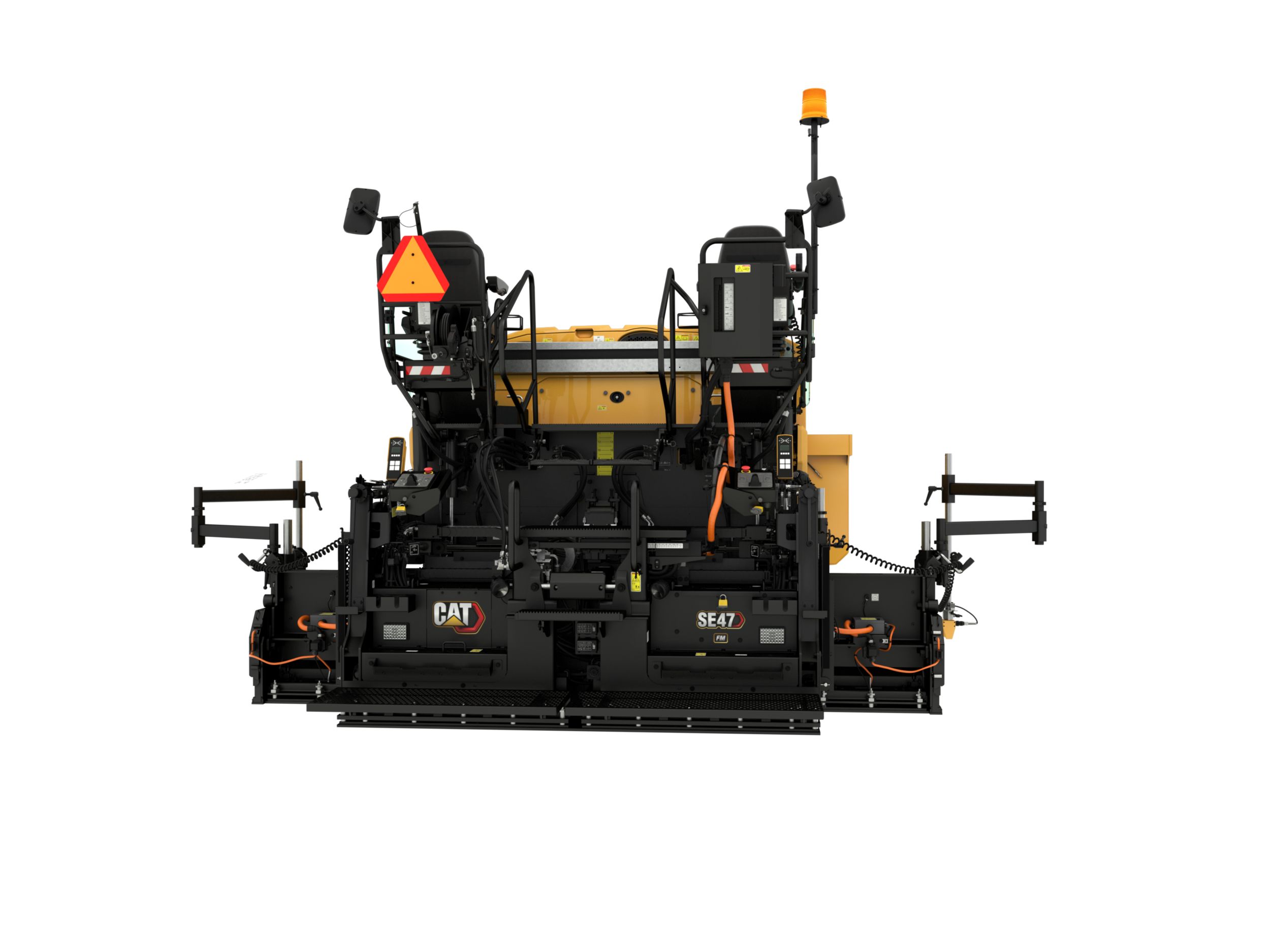

SE47 FM (4B5) Vibratory Screed

360 View Video

Product Description

The Cat® SE47 FM screed provides application versatility with mutiple berm options and a small foot print for starting next to curbs and obstacles. This screed is a perfect match for urban streets, parking lots, rural roads and many other variable width paving applications.

Specifications
Us
Metric
Weights
Standard Weight
6073 lb
2755 kg
Operating Specifications
Standard Paving Range
2.4 - 4.7 m (8' - 15' 6")
Maximum Paving Width
20.5 ft
6.25 m
Maximum Paving Depth
10 in
250 mm
Heating Time - Maximum Width
25 minutes
Heating Time - Standard Width
15 minutes
Dimensions
Minimum Width - Endgates Attached
102 in
2590 mm
Transport Length - Tractor and Screed
18.1 ft
5505 mm
Operating Specifications
Crown Range
-5% to +10%
Vibratory Speed Range
0 to 3000 vpm
Extender Height Range
-41 mm to +6.25 mm
Extender Slope Range
0% to 9%
Dimensions
Screed Plates Width, Front to Back, Main Screed
24 in
616 mm
Screed Plates Width, Front to Back, Extenders
9 in
228 mm
Length - Front to Back, Endgates Attached
86 in
2191 mm
Length - Front to Back, Endgates Removed
59 in
1509 mm
Standard/Optional

Standard Equipment

Material Delivery
Operating Environment
Power Controls
Service and Repair
Safety

Optional Equipment

Operating Environment
Technology
Safety
Material Delivery
