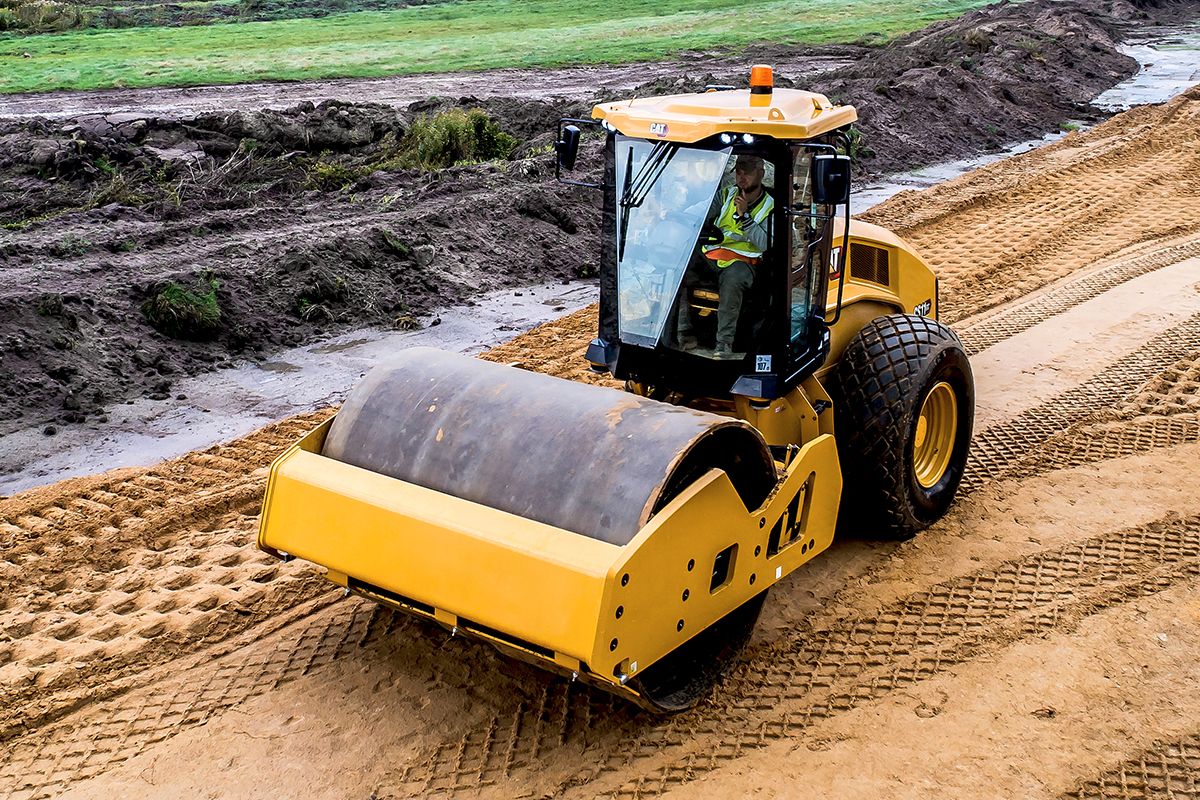

CS11 GC Vibratory Soil Compactor

360 View Video

Product Description

The Cat® CS11 GC Vibratory Soil Compactors are ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable vibratory system, exceptional operator comfort and ease of use deliver dependable, economical production with performance that exceeds expectations.

Specifications
Us
Metric
Engine
Gross Power
122.9 hp
91.7 kW
Engine Power - ISO 14396
120.7 hp
90 kW
Net Power - ISO 9249
112.2 hp
83.7 kW
Net Power - SAE J1349:2011
111.2 hp
82.9 kW
Note (1)
Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Engine Model
Cat® C3.6
Emissions
U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, Japan 2014
Stroke
4.7 in
120 mm
Bore
3.9 in
98 mm
Weights
Operating Weight - With Cab
24775 lb
11238 kg
Operating Weight - With ROPS/FOPS Canopy
24435 lb
11084 kg
Weight - Drum with Cab
13549 lb
6146 kg
Weight - Drum with ROPS/FOPS Canopy
13453 lb
6102 kg
Note (1)
Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning.
Vibratory System
Nominal Amplitude - High
0.079 in
2 mm
Nominal Amplitude - Low
0.039 in
1 mm
Centrifugal Force - Maximum
56200 lb
250 kN
Centrifugal Force - Minimum
33500 lb
149 kN
Static Linear Load - With Cab
161.3 lb/in
28.8 kg/cm
Static Linear Load - With ROPS/FOPS Canopy
160.1 lb/in
28.6 kg/cm
Dimensions
Compaction Width
84 in
2134 mm
Overall Length
18.7 ft
5.7 m
Overall Width
7.5 ft
2.3 m
Maximum Height
9.9 ft
3.03 m
Drum Diameter
60.4 in
1535 mm
Wheel Base
9.8 ft
3 m
Operating Specifications
Ground Clearance
20.4 in
518 mm
Curb Clearance
19.4 in
492 mm
Turning Radius - Inside Drum Edge
12.7 ft
3.9 m
Travel Speed - Maximum
6.8 mile/h
11 km/h
Service Refill Capacities
Fuel Tank Capacity
56.3 gal (US)
213 l
DEF Tank
5 gal (US)
19 l
Cooling System
4.9 gal (US)
18.5 l
Engine Oil - With Filter
3.1 gal (US)
11.6 l
Eccentric Weight Housings (combined)
6.9 gal (US)
26 l
Axle and Final Drives
2.6 gal (US)
10 l
Hydraulic Tank
6.1 gal (US)
23 l
Sustainability
Recyclability
94%
Operating Specifications
Drum Width
84 in
2134 mm
Standard/Optional

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
ELECTRICAL
OTHER

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
OTHER
