CP44B Vibratory Soil Compactor

Product Description

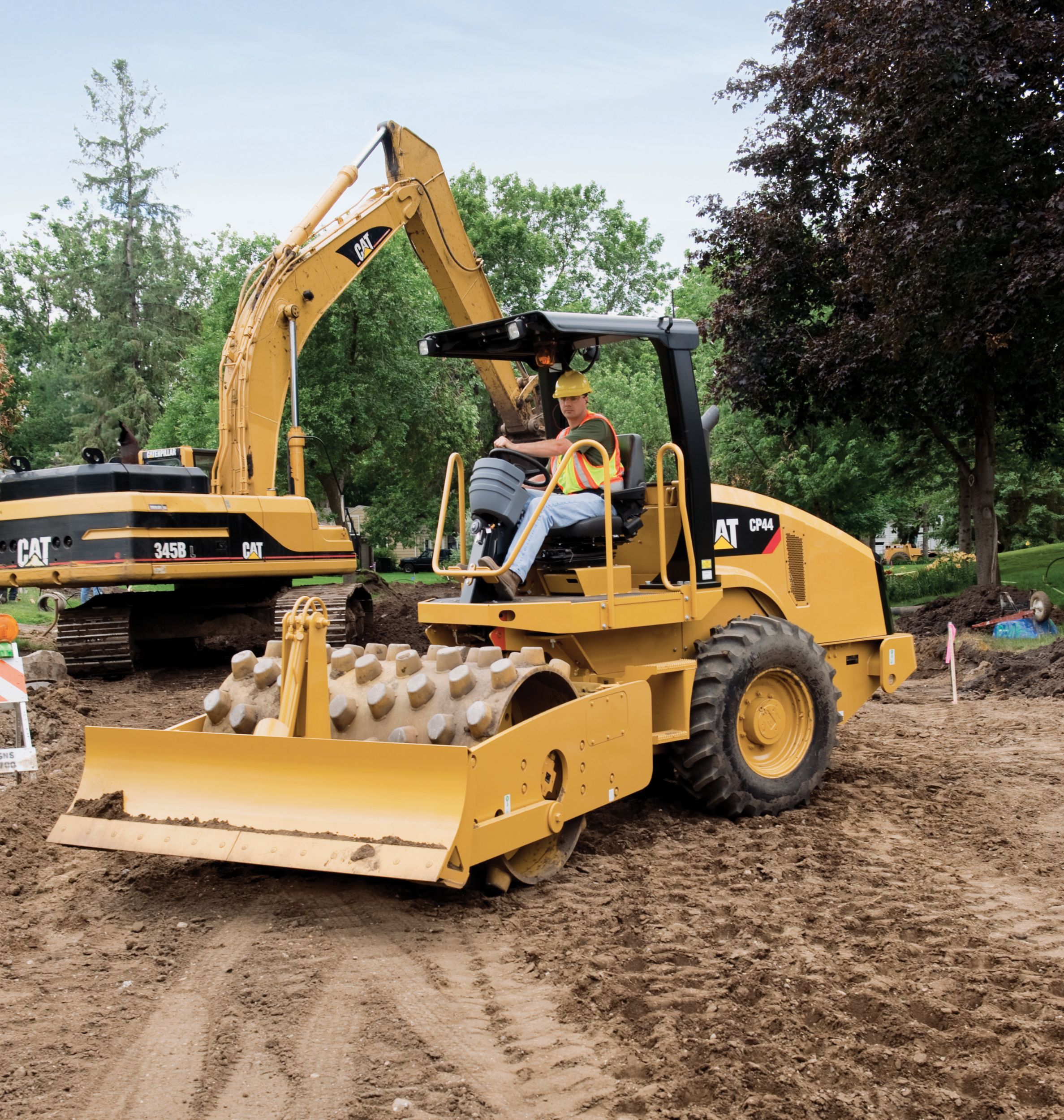

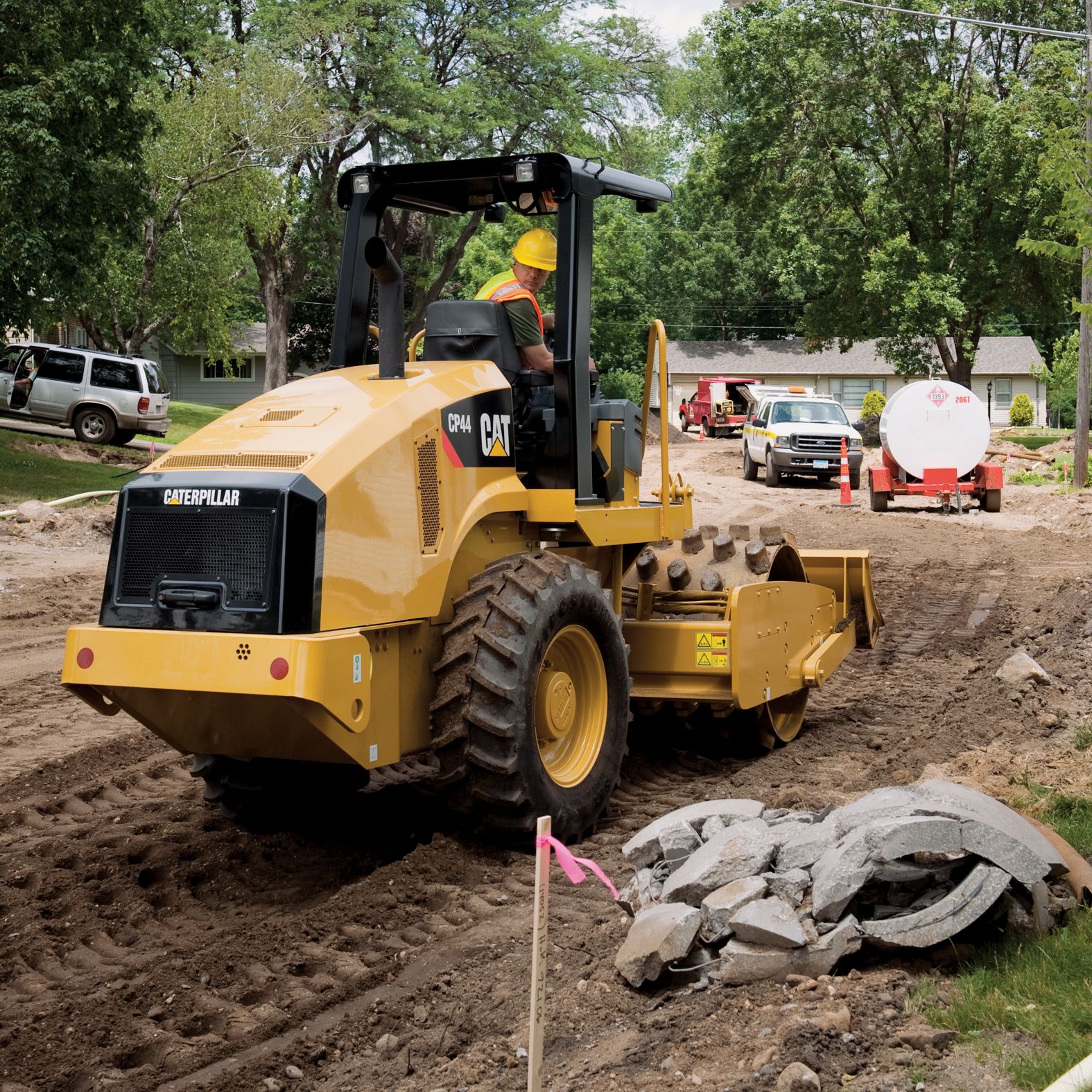

The CP44B provides exceptional performance on flat or sloped terrain. This machine is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.

Specifications
Us
Metric
Weights
Operating Weight - With Cab
16471 lb
7471 kg
Weight - Drum with ROPS/FOPS
7939 lb
3601 kg
Operating Weight - With ROPS/FOPS
15935 lb
7228 kg
Weight - Drum with Cab
8181 lb
3711 kg
Operating Specifications
Compaction Width
66 in
1676 mm
Ground Clearance
16.1 in
408 mm
Travel Speed - Maximum
7 mile/h
11.4 km/h
Turning Radius - Inside Drum Edge
10 ft
3.05 m
Engine
Gross Power
100.6 hp
75 kW
Engine Model
Cat C3.4B
Dimensions
Height - With ROPS/FOPS or Cab
9.35 ft
2.85 m
Overall Width
5.91 ft
1.8 m
Overall Width - With Blade Option
6.95 ft
2.12 m
Overall Length - With Blade Option
18.41 ft
5.61 m
Drum Diameter - Over Pads
48.2 in
1225 mm
Drum Width
66 in
1676 mm
Overall Length
16.7 ft
5.09 m
Optional Blade Height
22.6 in
574 mm
Wheel Base
8.5 ft
2.6 m
Vibratory System
Centrifugal Force - Maximum
29900 lb
133 kN
Nominal Amplitude - High
0.063 in
1.59 mm
Centrifugal Force - Minimum
15000 lb
67 kN
Nominal Amplitude - Low
0.031 in
0.8 mm
Variable Frequency Option Range
23.3-31.9 Hz (1400-1914 vpm)
Vibratory Frequency - Standard
1914 V/m
31.9 Hz
Tires
Tires
14.9 × 24 8-ply traction
Service Refill Capacities
Fuel Tank Capacity
37 gal (US)
140 l
Standard/Optional

Standard Equipment

OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
POWER TRAIN
ELECTRICAL
OTHER

Optional Equipment

OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
POWER TRAIN
TECHNOLOGY SOLUTIONS
OTHER
