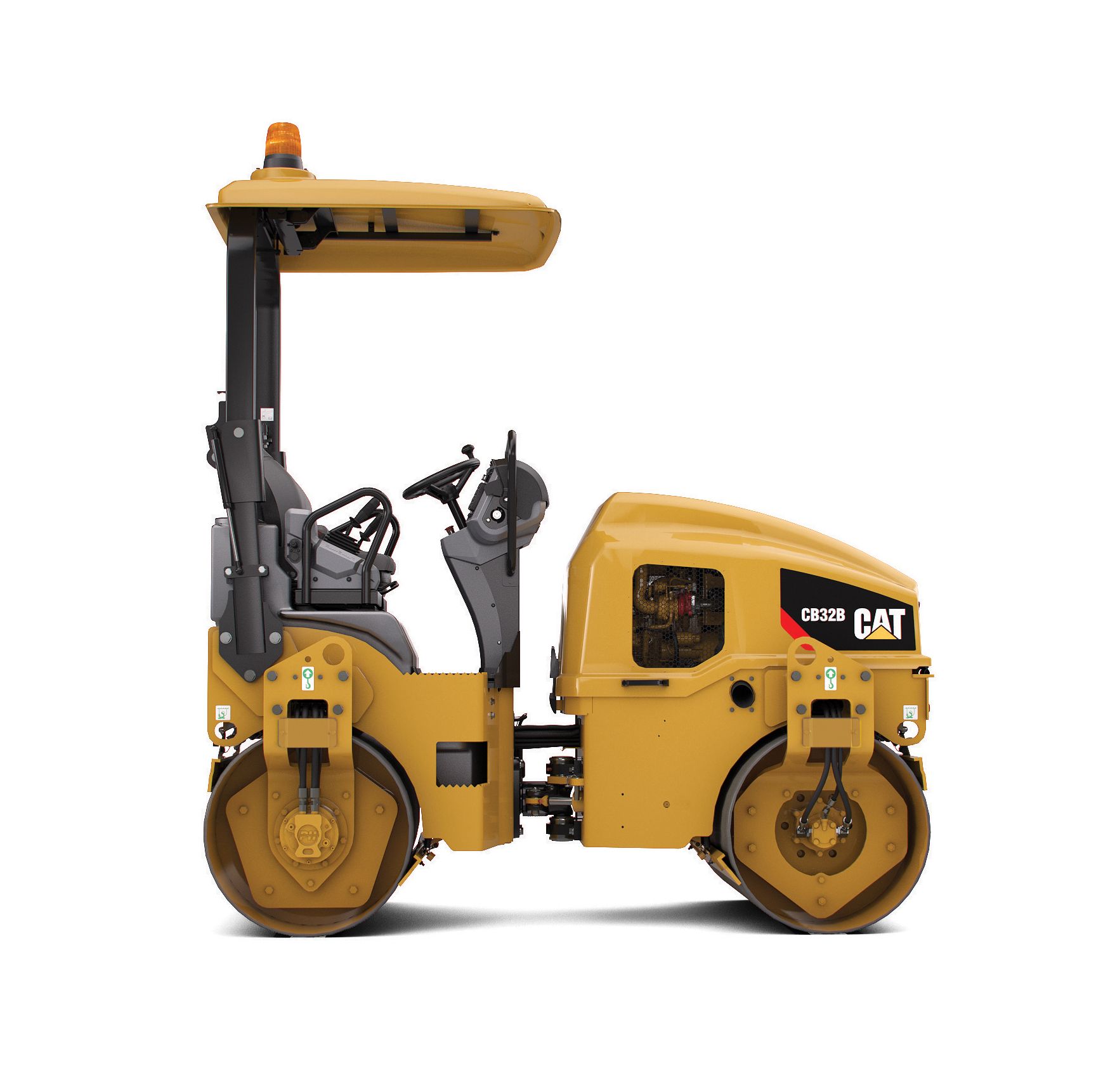

CB32B Utility Compactor

Video

Product Description

The CB32B is a 3 metric ton machine with 1300 mm (51") drums. This versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. It provides greater production capabilities and its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions or other similar sized jobs.

Specifications
Us
Metric
Weights
Operating Weight
6190 lb
2808 kg
Maximum Weight at Rear Drum
3239 lb
1470 kg
Maximum Weight at Front Drum
2950 lb
1338 kg
Operating Specifications
Standard Compaction Width
51 in
1300 mm²
Curb Clearance
20 in
500 mm²
Turning Radius - Inside Drum Edge
7.8 ft
2370 mm²
Ground Clearance
11 in
285 mm²
Travel Speed - Maximum
7.5 mile/h
12 km/h
Static Linear Load
69 lb/in
12.3 kg/cm
Engine
Gross Power
36.2 hp
27 kW
Engine Model
C1.5
Dimensions
Overall Length
101 in
2575 mm²
Wheel Base
71 in
1800 mm²
Overall Width
56 in
1412 mm²
Drum Width
51 in
1300 mm²
Drum Diameter
28 in
720 mm²
Maximum Machine Height
106 in
2700 mm²
Vibratory System
Centrifugal Force per Drum - Minimum
3485 lb
15.5 kN
Frequency
63/55/42 Hz (3,780/3,300/2520 vpm)
Nominal Amplitude - High
0.021 in
0.525 mm²
Centrifugal Force per Drum - Maximum
7823 lb
34.8 kN
Service Refill Capacities
Fuel Tank Capacity
17 gal (US)
63.5 l
Water Spray Tank Capacity
62 gal (US)
235 l
Standard/Optional

Optional Equipment

Anti-Freeze System
Ballast
Battery Disconnect Switch
Bio-hydraulic Oil
Foldable Canopy
Fixed Canopy
Dual Propel Levers
Non-Suspension Seat
Product Link
Fixed ROPS
Foldable ROPS
Seat w/Operator Presence Switch
Sliding Seat
Traction Control
