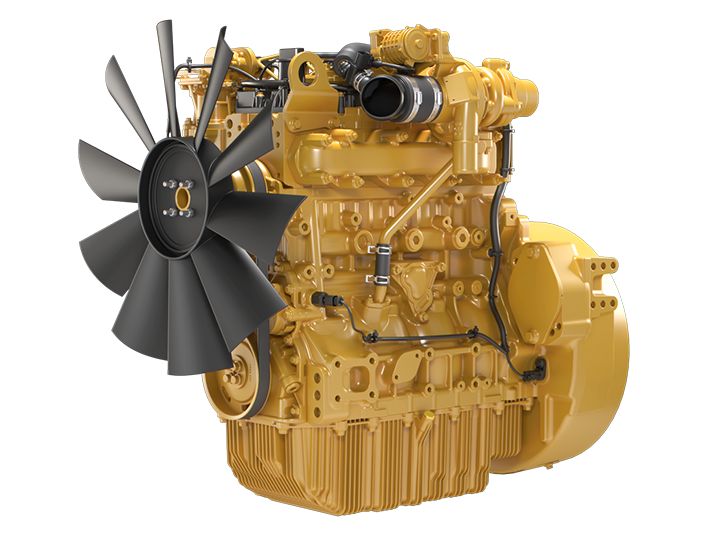

Cat® C3.6 Diesel Engine

360 View

Product Description

The Cat® C3.6 Industrial Diesel Engines offer the perfect balance of compact size, reliability, and performance. This engine is offered in ratings ranging up to 100 bkW (134 bhp) @ 2200 rpm. The C3.6 is designed to meet the needs of many industries and applications, including excavators, agricultural tractors, aircraft ground support, bore/drill rigs, chippers/grinders, compactors/rollers, compressors, forestry, irrigation equipment, material handling, mining, earthmoving equipment, paving equipment, pumps, fruit harvesters equipment, turf and underground mining equipment.

Specifications
Us
Metric
Power Rating
Maximum Power
134 hp
100 kW
Maximum Torque
406 lb-ft @ 1500 rpm
550 Nm @ 1500 rpm
Rated Speed
2000-2400 rpm
Minimum Power
74 hp
55 kW
Emission Standards
Emissions
U.S. EPA & CARB Tier 4 Final, EU Stage V
General
Engine Configuration
In-Line 4
Bore
3.9 in
98 mm
Stroke
4.7 in
120 mm
Displacement
220 in³
3.6 l
Compression Ratio
17.0:1
Aspiration
Turbocharged-Aftercooled (TA)
Combustion System
Direct Injection
Rotation from Flywheel End
Counterclockwise
Aftertreatment
DOC+DPF or DOC+DPF+SCR
Engine Dimensions - Approximate
Length
26.3 in
667 mm
Width
22.2 in
564 mm
Height
31 in
787 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
840 lb
381 kg
Standard/Optional

Standard Equipment

Control System
Flywheels and Flywheel Housing
Fuel System
Lube System
General
U.S. EPA Tier 4 Final, EU Stage V Aftertreatment/ Clean Emissions Control Equipment
