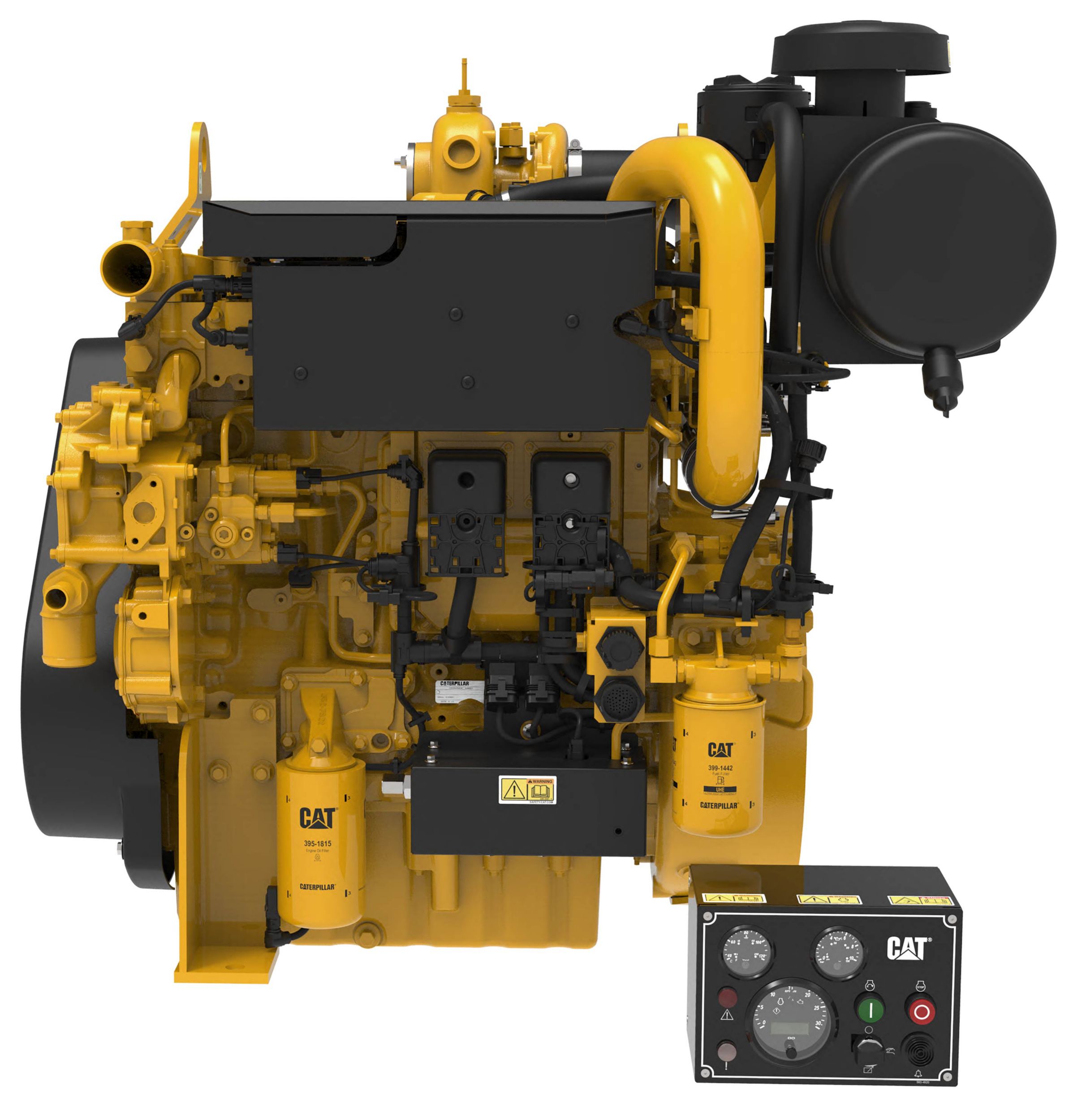

C4.4 (Electronic Control System)

Video

Product Description

C4.4 (Electronic Control System)

Specifications
Us
Metric
Power Rating
Power Range
71/81/108/129 bkW @ 1800 rpm, 71/86/108 bkW @ 1500 rpm
Dimensions & Weights
Length
33.7 in
856 mm
Engine Specifications
Configuration
In-line 4, 4-stroke-cycle diesel
Dimensions & Weights
Height
40.9 in
1038 mm
Minimum Width
30.6 in
778 mm
Engine Specifications
Emissions
U.S. EPA Tier 3 certified, EU Stage V certified
Rated Engine Speed
1500/1800 rpm
Dimensions & Weights
Maximum Width
32 in
814 mm
Minimum Engine Dry Weight
1200 lb
544 kg
Engine Specifications
Bore
4.13 in
105 mm
Stroke
5 in
127 mm
Dimensions & Weights
Maximum Engine Dry Weight
1278 lb
580 kg
Engine Specifications
Displacement
268 in³
4.4 l
Aspiration
Turbocharged-aftercooled and turbo only aspiration (Turbocharged aspiration only for 65ekW (71bkW))
Governor
Electronic (A5 ECM)
Refill Capacity
Lube Oil System w/Oil filter change: 11 L 2.8 gal)
Oil Change Interval
500 hrs
Cooling
Heat exchanger, combined circuit keel cooling, or separate circuit keel cooling
Flywheel Housing
SAE No. 03 with SAE 11.5 flywheel (126 teeth)
Standard/Optional

Standard Equipment

COOLING SYSTEM
EXHAUST SYSTEM
FUEL SYSTEM
GENERAL
LUBE SYSTEM
MOUNTING SYSTEM
STARTING SYSTEM

Optional Equipment

GENERAL
