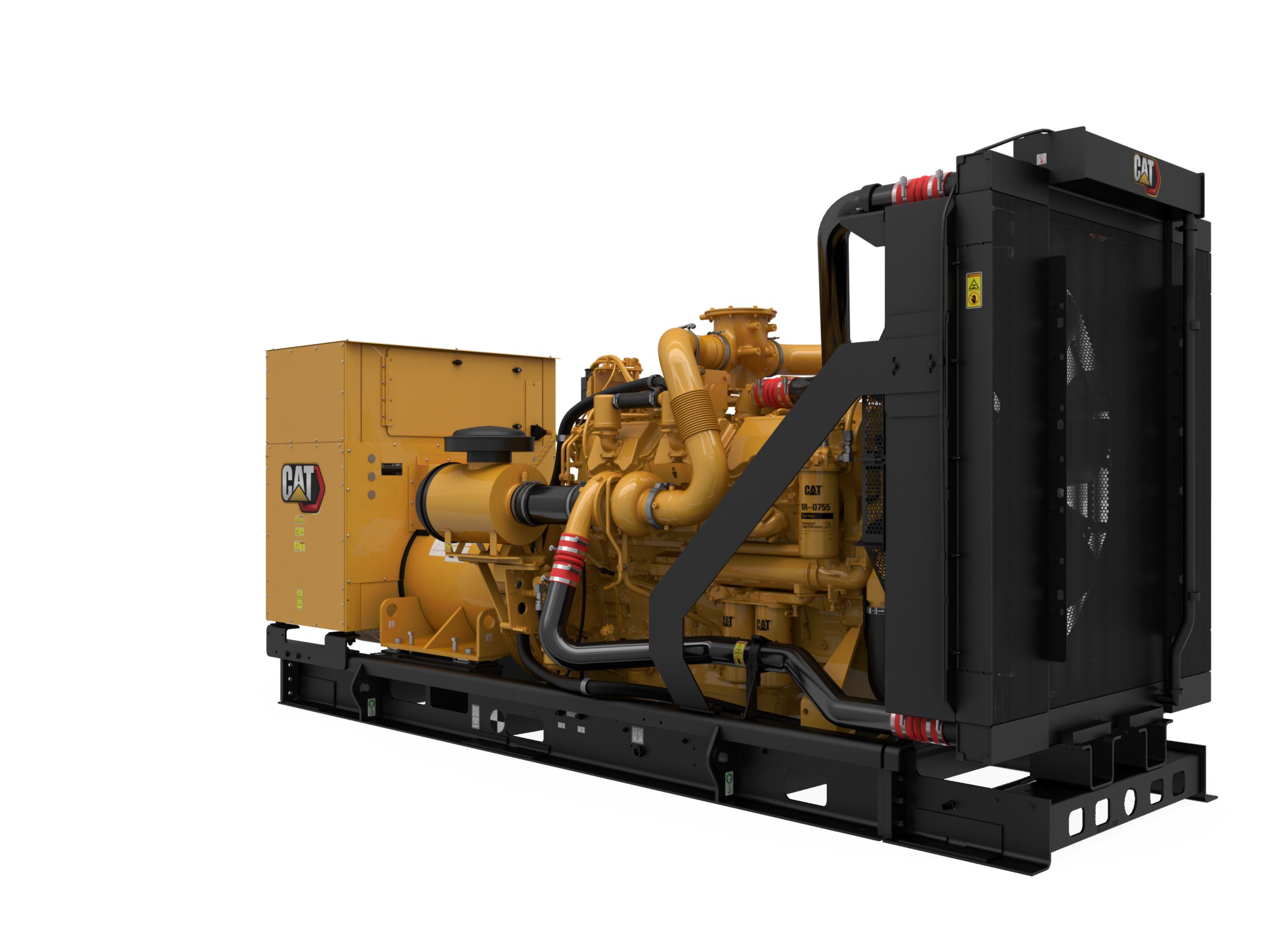

C27 Generator Set

360 View

Product Description

The C27 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 635 to 800 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and to take on 100 % rated load in one step. The C27 is certified as a low fuel consumption system as well as having a certificate for EPA Stationary Emergency (Tier 2).

Specifications
Us
Metric
Generator Set Specifications
Maximum Rating
800 ekW
Minimum Rating
635 ekW
Emissions/Fuel Strategy
Low Fuel, Tier 2 Nonroad Equivalent
Voltage
208 to 600 Volts
Frequency
60 Hz
Speed
1800 rpm
Duty Cycle
Standby, Prime
Engine Specifications
Engine Model
C27 ATAAC, V-12, 4-Stroke, Water-Cooled Diesel
Bore
5.4 in
137.2 mm
Stroke
6 in
152.4 mm
Displacement
1649.47 in³
27.03 l
Compression Ratio
16.1:1
Aspiration
TA
Fuel System
MEUI
Governor Type
Adem™A4
Generator Set Dimensions
Length - Maximum
184 in
4674 mm
Width - Maximum
67.8 in
1723 mm
Height - Maximum
85.1 in
2162 mm
Standard/Optional

Standard Equipment

Air Inlet
Control Panel
Cooling System
Exhaust System
Fuel System
Generators and Attachments
Lube System
Mounting System
Starting and Charging System
General

Optional Equipment

Air Inlet System
Starting / Charging System
Circuit breakers
Control Panels
Cooling System
Enclosures
Exhaust System
Generator and Attachments
Lube System
Mounting System
Power Connections
Special Tests / Reports
General
