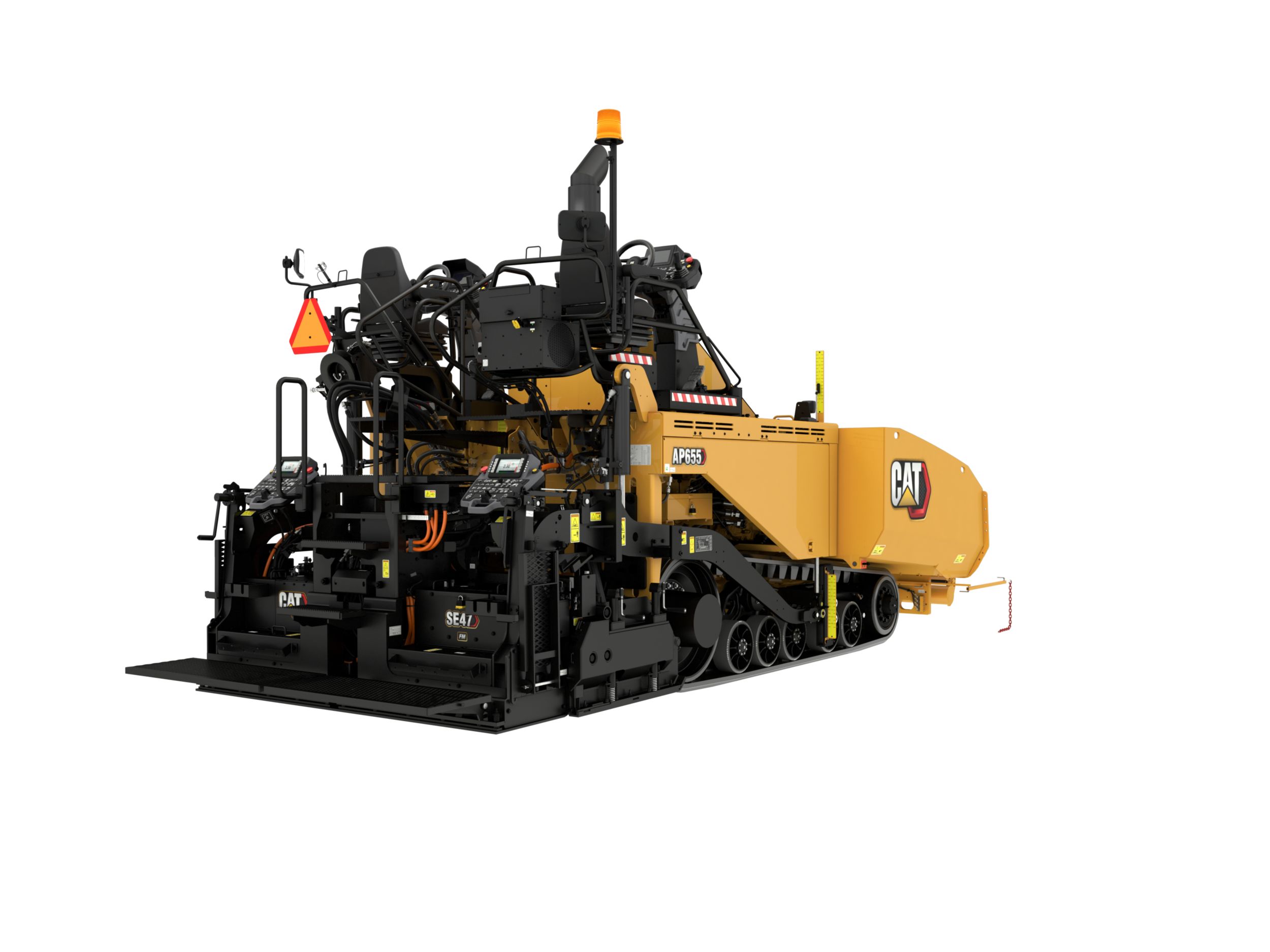

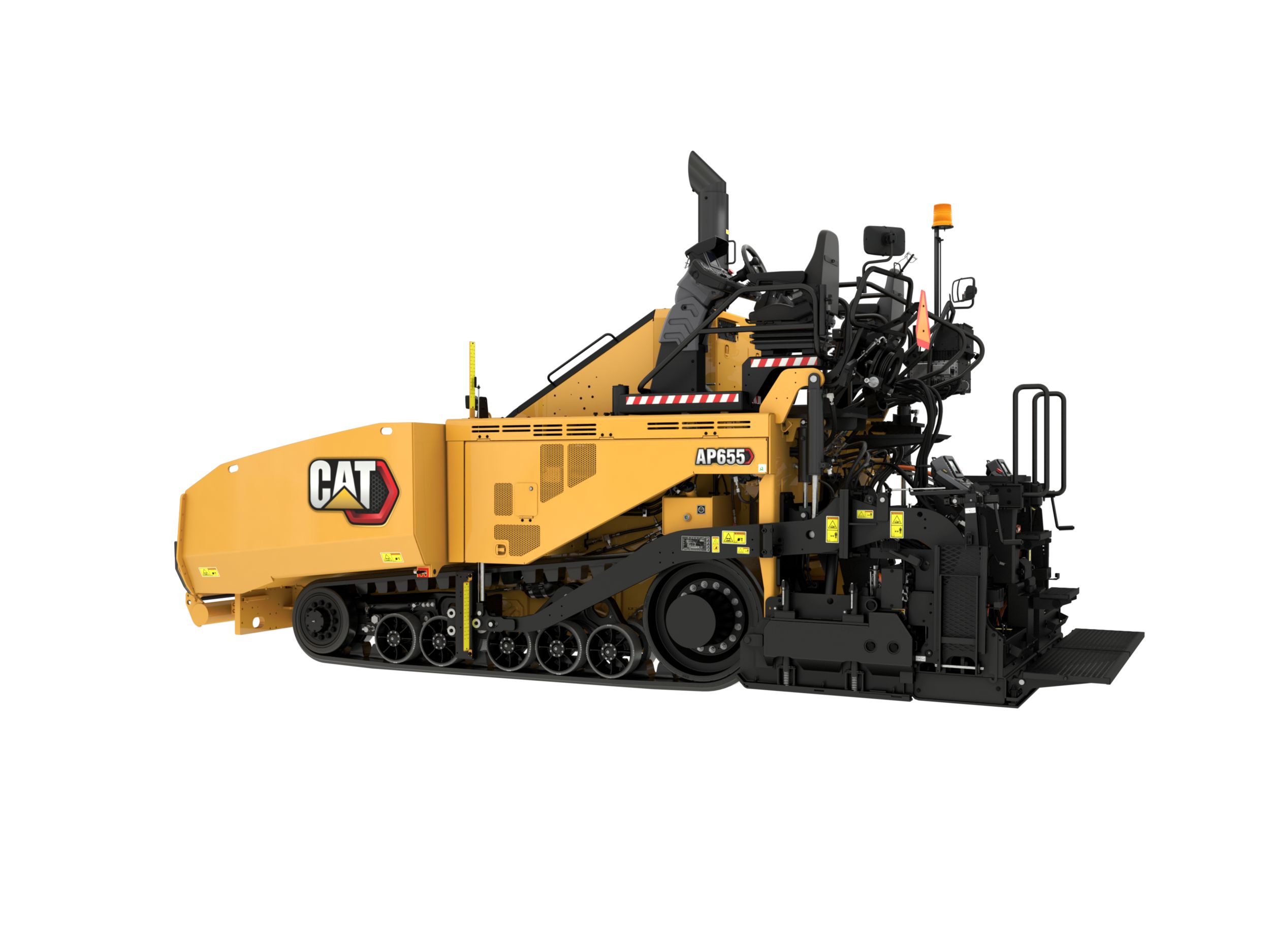

AP655 Mobil-Trac Paver

360 View Video

Product Description

The AP655 asphalt paver is a rubber track paver that delivers a high-return on investment. This high-production paver offers a fast heating screed system, durable components, and easy to use technology, while consuming less fuel. A variety of screed choices provide versatility and high-quality results on interstates, highways, airports, and parking lots.

Specifications
Us
Metric
Dimensions
Paving Range with SE47 FM
2.44 - 6.25 m (8' - 20' 6")
Engine
Engine Power (1)
173 hp
129 kW
Engine Model (1)
Cat C4.4
Operating Specifications
Maximum Travel Speed
9 mile/h
14.5 km/h
Maximum Paving Speed
210 ft/min
64 m/min
Inside Turn Radius
1.5 ft
0.5 m
Weights
Operating weight with SE47 FM
40560 lb
18397 kg
Dimensions
Paving Range with SE50 V
2.55 - 6.5 m (8' 4" - 21' 4")
Paving Range with SE60 V
3.0 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 FM
3.0 m - 7.8 m (10' - 25' 6")
Operating Specifications
Maximum Throughput Capacity
1433 ton(US)/h
1300 tonnes/hr
Weights
Operating weight with SE50 V
41597 lb
18868 kg
Operating weight with SE60 FM
42150 lb
19119 kg
Operating weight with SE60 V
41890 lb
19001 kg
Shipping Weight - Paver Only
33730 lb
15292 kg
Dimensions
Operating Length
21.75 ft
6.6 m
Operating Width
10.8 ft
3.3 m
Overall Height
12.3 ft
3.7 m
Transport Length
20.9 ft
6.4 m
Transport Width
9.8 ft
3 m
Transport Height
9.7 ft
2.9 m
Service Refill Capacities
Fuel Tank Capacity
73 gal (US)
278 l
DEF Tank
5 gal (US)
19.1 l
Cooling System
8 gal (US)
31 l
Hydraulic Oil Tank
58 gal (US)
219 l
Washdown Tank
7.9 gal (US)
30 l
Standard/Optional

Standard Equipment

Operating Environment
Technology
Powertrain
Electrical system
Material Delivery
Service and Maintenance
Safety

Optional Equipment

Technology
Operating Environment
Powertrain
Electrical System
Material Delivery
Service and Maintenance
Screed Choices
Grade References
