AD63 Underground Articulated Truck

360 View Video

Product Description

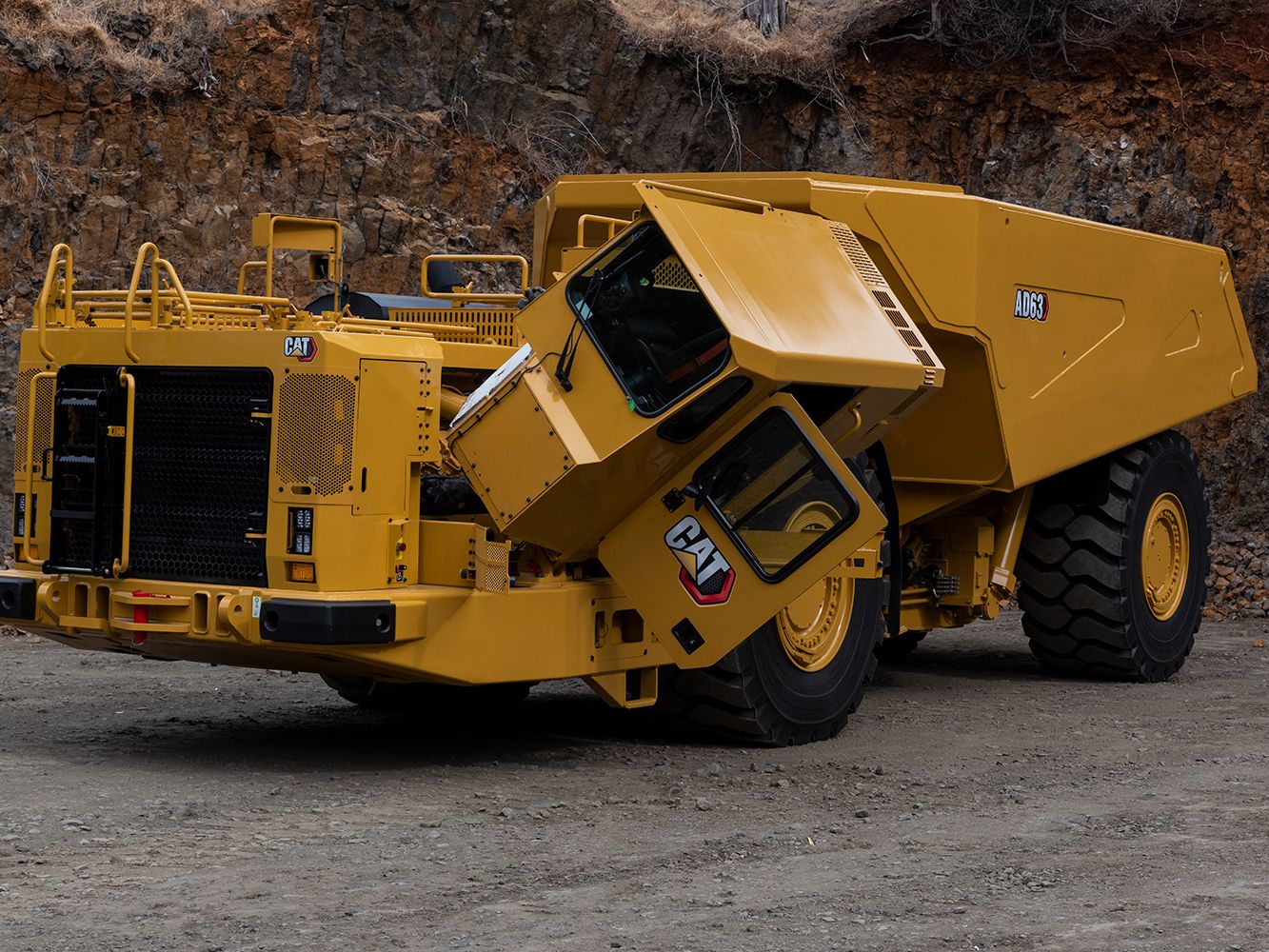

The Cat® AD63 Underground Truck is designed for high production, lower costs and increased efficiency. It’s built tough to stand up to the harsh conditions of your site, and features a number of improvements over its predecessor, including a 5% greater payload and more torque. The world-class cab keeps operators safe and comfortable all shift long, and new enhancements help ensure the safety of everyone working in, on or around the machine. It’s powered by a Cat C27 engine that meets EU Stage V Emissions Standards for cleaner performance, as well as reduced ventilation costs. And its rugged construction and simplified maintenance make for longer life and lower operating costs, so you can get the most out of your investment.

Specifications
Us
Metric
Engine
Engine Model
Cat® C27
Bore
5.4 in
137.2 mm
Stroke
6 in
152.4 mm
Displacement
1650 in²
27 l
Note (1)
Meets EU Stage V emission standards and U.S. EPA Tier 4 Final.
Note (2)
Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard.
Engine Power - EU Stage V Engine - ISO 14396:2002
795 hp
593 kW
Operating Specifications
Gross Machine Operating Mass
262218 lb
118940 kg
Body Capacities
26.9-38.3 m³ (35.2-50.1 yd³)
Nominal Payload Capacity
138891 lb
63000 kg
Weights
Empty
115577 lb
52425 kg
Empty - Front Axle
81716 lb
37066 kg
Empty - Rear Axle
33861 lb
15359 kg
Loaded
254468 lb
115425 kg
Loaded - Front Axle
126669 lb
57456 kg
Loaded - Rear Axle
127800 lb
57969 kg
Weight Distribution
Empty - Front Axle
70.7%
Empty - Rear Axle
29.3%
Loaded - Front Axle
49.8%
Loaded - Rear Axle
50.2%
Transmission
Forward - 1
4.1 mile/h
6.5 km/h
Forward - 2
5.7 mile/h
9.2 km/h
Forward - 3
7.7 mile/h
12.4 km/h
Forward - 4
10.3 mile/h
16.6 km/h
Forward - 5
14 mile/h
22.5 km/h
Forward - 6
18.9 mile/h
30.3 km/h
Forward - 7
25.5 mile/h
41 km/h
Reverse - 1
5.3 mile/h
8.6 km/h
Note
Maximum travel speeds with standard 35 × 65 R33 tires.
Final Drives
Differential Ratio
3.46:1
Final Drive Ratio
5.5:1
Total Reduction Ratio
19.04:1
Body Hoist
Raise
13 s
13 s
Lower
24 s
24 s
Total Cycle Time
37 s
37 s
Body Capacities
Dump Body - 1 - Standard
35.2 yd³
26.9 m³
Dump Body - 2
42.6 yd³
32.6 m³
Dump Body - 3
44.2 yd³
33.8 m³
Dump Body - 4
47.9 yd³
36.6 m³
Dump Body - 5 (Light Material)
50.1 yd³
38.3 m³
Note
Heaped SAE 2:1.
Turning Dimensions
Outside Clearance Radius
393.9 in
10005 mm
Inside Turn Radius
218.1 in
5540 mm
Frame Oscillation
10°
Articulation Angle
42.5 °
42.5 °
Service Refill Capacities
Engine Crankcase - With Filter
25 gal (US)
95 l
Transmission
14 gal (US)
53 l
Hydraulic Tank
100.6 gal (US)
381 l
Cooling System
39.6 gal (US)
150 l
Front Differential and Final Drives
36.5 gal (US)
138 l
Rear Differential and Final Drives
36.5 gal (US)
138 l
Fuel Tank
237.7 gal (US)
900 l
Tires
Tire Size
35 × 65 R33
Standards
Standards
ROPS/FOPS Certified Cab
Engine
Note (3)
All rating conditions are based on ISO/TR14396, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (59° F) and fuel inlet temperature 40° C (104° F).
Standard/Optional

Standard Equipment

POWERTRAIN
ELECTRICAL
OPERATOR ENVIRONMENT
TIRES, RIMS, AND WHEELS
OTHER STANDARD EQUIPMENT

Optional Equipment

OPTIONAL EQUIPMENT
