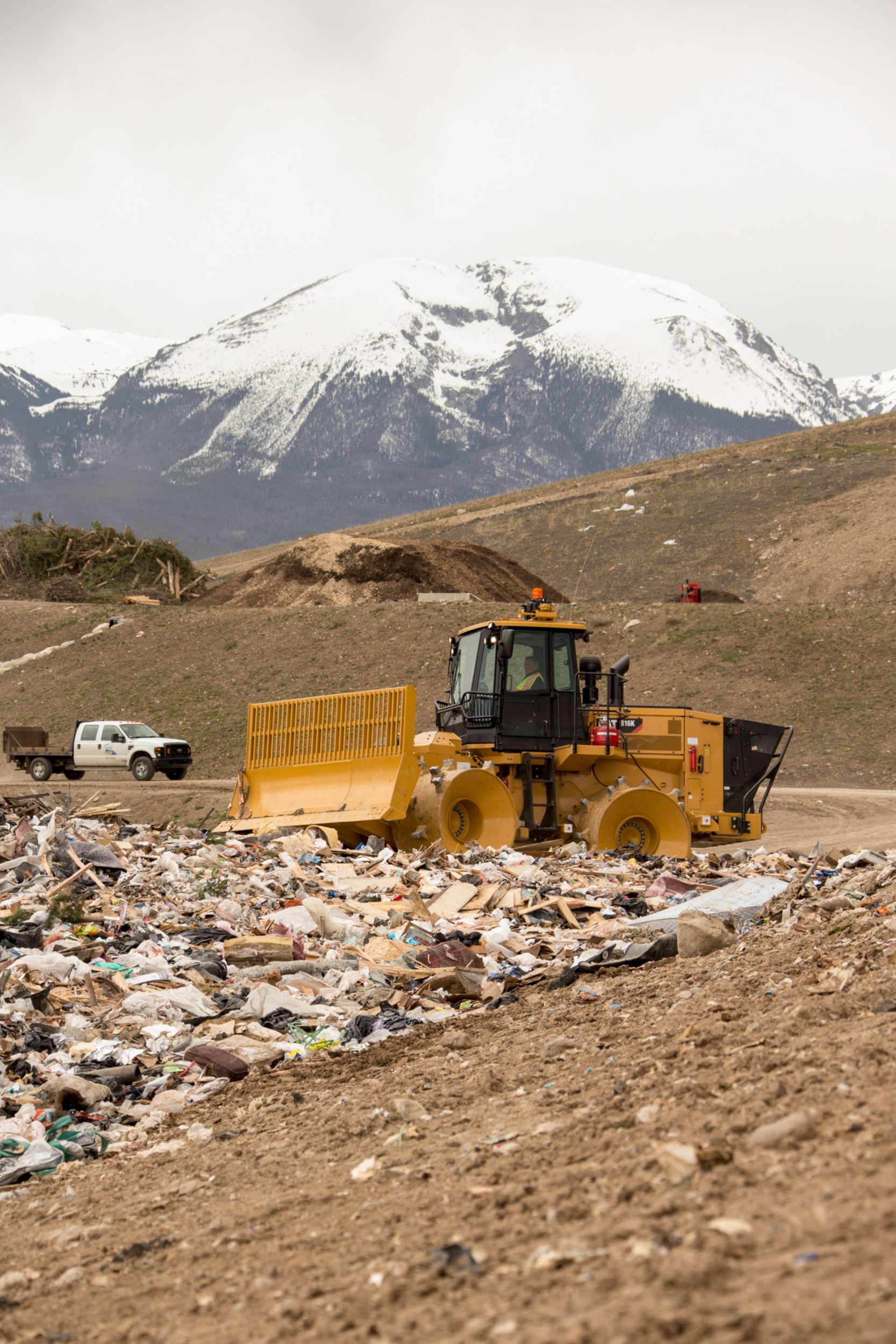

816K Landfill Compactor

360 View Video

Product Description

Purpose-built for landfill operation, the Cat 816K delivers features, performance and efficiency that come from over 45-plus years of industry leadership. Field-proven protection and integrated technologies provide peak availability and optimized landfill performance.

Specifications
Us
Metric
Engine
Gross Power
284 hp
212 kW
Net Power
248 hp
185 kW
Engine Model
Cat® C7.1: configured for two emissions options
Bore
4.1 in
105 mm
Stroke
5.3 in
135 mm
Displacement
427.8 in³
7.01 l
High Idle Speed
2270 r/min
2270 r/min
Rated Power (SAE J1349) - Tier 3/Stage IIIA Equivalent
249 hp
186 kW
Maximum Net Torque - 1,400 rpm - Tier 4 Final/Stage IV
899 lb/ft
1219 N·m
Rated Power (Net ISO 9249) - Tier 4 Final/Stage IV
248 hp
185 kW
Rated Power (Net ISO 9249) - Tier 3/Stage IIIA equivalent
249 hp
186 kW
Gross Power - ISO 14396 - Tier 4 Final/Stage IV
274 hp
204 kW
Gross Power - SAE J1995 - Tier 3/Stage IIIA Equivalent
286 hp
213 kW
Rated Power (SAE J1349) - Tier 4 Final/Stage IV
248 hp
185 kW
Gross Power - SAE J1995 - Tier 4 Final/Stage IV
284 hp
212 kW
Low Idle Speed
800 r/min
800 r/min
Emissions
Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards
Transmission
Travel Speeds - Forward - Second
6.8 mile/h
10.9 km/h
Travel Speeds - Reverse - First
4.3 mile/h
7 km/h
Transmission Type
Planetengetriebe – Lastschaltgetriebe – ECPC (Electronic Clutch Pressure Control, Elektronische Kupplungsdrucksteuerung)
Travel Speeds - Forward - First
3.8 mile/h
6.1 km/h
Travel Speeds - Reverse - Second
7.8 mile/h
12.5 km/h
Hydraulic System
Pump Flow at 2,111 rpm
23.5 gal/min
89 l/min
Maximum Supply Pressure
2930 psi
20200 kPa
Cylinders, Double Acting - Lift, Bore and Stroke
120 mm × 915 mm (4.7 in × 36.0 in)
Main Relief Pressure
3190 psi
22000 kPa
Axles
Front
Planetary – Fixed
Rear
Planetary – Oscillating
Oscillation Angle
±6°
Braking System
Parking Brake
Drum and Shoe, Spring Applied, Hydraulic Released
Service Refill Capacities
Diesel Exhaust Fluid Tank (Tier 4 Final/Stage IV Only)
4.2 gal (US)
16 l
Differential - Final Drives - Rear
11.4 gal (US)
43 l
Engine Crankcase
5.28 gal (US)
20 l
Fuel Tank
132.1 gal (US)
500 l
Differential - Final Drives - Front
11.4 gal (US)
43 l
Hydraulic Tank Only
19.8 gal (US)
75 l
Transmission
14.8 gal (US)
56 l
Cooling System - Tier 4 Final/Stage IV
21.4 gal (US)
81 l
Weights
Operating Weight
56899 lb
25809 kg
Cab - Standard
Machine Sound Level (ISO 6395) Tier 3/Stage IIIA Equivalent
112 dB(A)
112 dB(A)
Cab - Suppression
Operator Sound Level - ISO 6396
70 dB(A)
70 dB(A)
Cab - Standard
Machine Sound Level (ISO 6395) Tier 4 Final/Stage IV
111 dB(A)
111 dB(A)
Operator Sound Level - ISO 6396
71 dB(A)
71 dB(A)
Operating Specifications
Maximum Operating Weight (Tier 4 Final/Stage IV)
56899 lb
25809 kg
Maximum Operating Weight (Tier 3/Stage IIIA equivalent)
56308 lb
25541 kg
Dimensions (Approximate)
Height - Top of Exhaust Pipe
11.5 ft
3497 mm
Height - Top of Hood
8.9 ft
2720 mm
Ground Clearance - Bumper
2.7 ft
818 mm
Hitch to Centerline of Front Axle
5.5 ft
1675 mm
Wheel Base
11 ft
3350 mm
Width - Over Wheels
131.4 ft
3338 mm
Overall Length - Maximum
26.4 ft
8058 mm
Outside Turning Radius - Blade
21.2 ft
6473 mm
Height - Cab Roof
12.7 ft
3878 mm
Height - Top of Beacon
14.3 ft
4368 mm
Inside Turn Radius - Wheels
8.9 ft
2700 mm
Inside Turn Radius - Blade
9.5 ft
2910 mm
Centerline of Rear Axle to Bumper
6.5 ft
1990 mm
Ground Clearance
1.7 ft
516 mm
Hydraulic System - Steering
Bore
4 in
101.6 mm
Steering Pressure Limited
4003 psi
27600 kPa
Vehicle Articulation Angle
84 °
84 °
Stroke
23.5 in
597 mm
Steering System - Pump
Piston – Variable Displacement
Steering System - Circuit
Closed Center Load Sensing
Maximum System Flow
147 L/min @ 2,111 rpm (38.8 gal/min @ 2,111 rpm)
Engine
Torque Rise
52 %
52 %
Wheels
Paddle Tips - Tip Height
6.25 in
159 mm
Engine
Maximum Net Torque - 1,400 rpm - Tier 3/Stage IIIA Equivalent
749 lb/ft
1016 N·m
Wheels
Paddle Tips - Drum Diameter
55.1 in
1400 mm
Paddle Tips - Width over Drums
131.4 in
3338 mm
Paddle Tips - Outside Diameter
67.6 in
1717 mm
Plus Tips - Outside Diameter
67.6 in
1717 mm
Plus Tips - Drum Width
40 in
1016 mm
Blades
Width - Moldboard Length
11.75 ft
3580 mm
Wheels
Combo Wheels - Replaceable
Welded
Plus Tips - Tips per Row
5
Plus Tips - Drum Diameter
55.1 in
1400 mm
Combo Wheels - Weight (Group)
13554 lb
6148 kg
Combo Wheels - Outside Diameter
67.6 in
1717 mm
Cab - Suppression
Machine Sound Level (ISO 6395) Tier 3/Stage IIIA Equivalent
110 dB(A)
110 dB(A)
Blades
Maximum Lift Above Ground
3.7 ft
1140 mm
Height - Including Cutting Edge and Screen
6.4 ft
1961 mm
Wheels
Paddle Tips - Weight (Group)
13126 lb
5954 kg
Paddle Tips - Tips per Row
5
Combo Wheels - Tips per Wheel
20
Plus Tips - Replaceable
Welded
Engine
Maximum Altitude - Without Derating
9842.52 ft
3000 m
Wheels
Combo Wheels - Drum Diameter
55.1 in
1400 mm
Paddle Tips - Drum Width
40 in
1016 mm
Plus Tips - Width over Drums
131.4 in
3338 mm
Plus Tips - Tip Height
6.25 in
159 mm
Cab - Suppression
Machine Sound Level (ISO 6395) Tier 4 Final/Stage IV
109 dB(A)
109 dB(A)
Wheels
Combo Wheels - Drum Width
40 in
1016 mm
Blades
Width - Over End Bits
12 ft
3656 mm
Wheels
Combo Wheels - Tip Height
6.25 in
159 mm
Plus Tips - Weight (Group)
13982 lb
6342 kg
Engine
Gross Power - ISO 14396 - Tier 3/Stage IIIA Equivalent
275 hp
205 kW
Blades
Maximum Depth of Cut
1.2 ft
362 mm
Wheels
Paddle Tips - Tips per Wheel
20
Plus Tips - Tips per Wheel
20
Service Refill Capacities
Cooling System - Tier 3/Stage IIIA Equivalent
19.3 gal (US)
73 l
Wheels
Combo Wheels - Width over Drums
131.4 in
3338 mm
Combo Wheels - Tips per Row
5
Paddle Tips - Replaceable
Welded
Service Refill Capacities
Note
All non-road Tier 4 Final and Stage IV diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for the EPA, 10 ppm for the EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1.
Standard/Optional

Standard Equipment

NOTE
POWER TRAIN
ELECTRICAL
OPERATOR ENVIRONMENT
GUARDS
FLUIDS
OTHER STANDARD EQUIPMENT
STANDARD ATTACHMENTS – OPERATOR ENVIRONMENT
STANDARD ATTACHMENTS – POWER TRAIN
STANDARD ATTACHMENTS – SPECIAL ARRANGEMENTS
STANDARD ATTACHMENTS – BLADES
STANDARD ATTACHMENTS – TECHNOLOGY PRODUCTS
STANDARD ATTACHMENTS – WHEELS AND CLEANER BARS

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
FLUIDS
SPECIAL ARRANGEMENTS
STARTING AIDS
MISCELLANEOUS
