General
Engine Output - SAE J1995
Bucket Payload
Operating Weight
Note

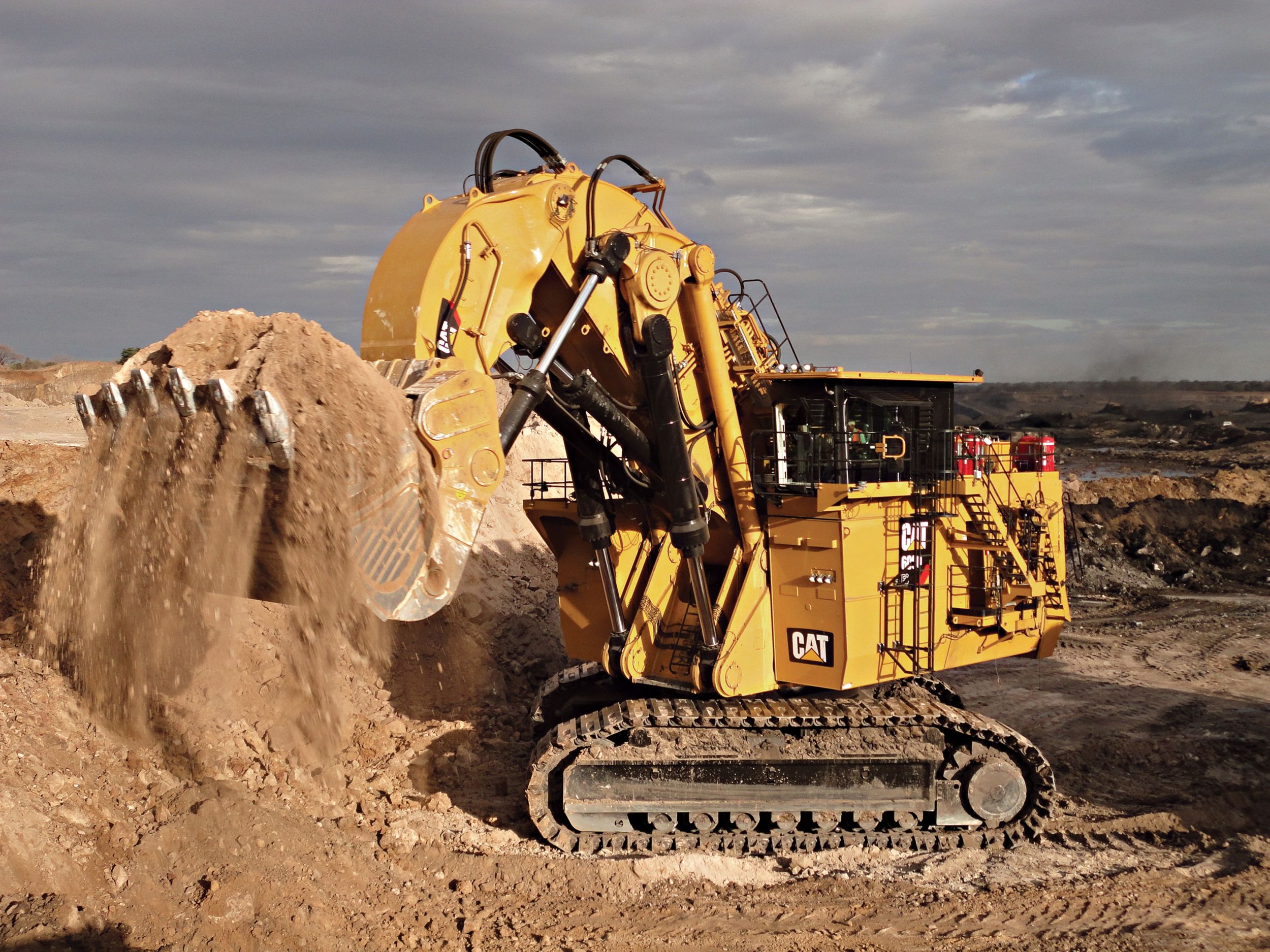

Specifications shown above apply to Face Shovel configuration. A Frontless configuration is also available.
Hydraulic System with Pump Managing System
Total Volume of Hydraulic Oil - Approximately
Hydraulic Tank Capacity - Approximately
Maximum Pressure - Swing Pumps
Maximum Pressure - Travel
Main Pumps
8 × variable flow axial piston pumps
Maximum Pressure - Attachment
Maximum Oil Flow - Swing Pumps
6 × 488 L/min (6 × 129 gal/min)
Maximum Oil Flow - Main Pumps
8 × 936 L/min (8 × 247 gal/min)
Swing Pumps
6 × reversible swash plate pumps
Hydraulic Oil Cooling
Features (2)
Extremely high cooling efficiency to ensure optimum oil temperature
Features (3)
Gear-type cooling pumps supplying high-volume, low-pressure oil to aluminum coolers
Diameter - Fan
Features (1)
Fan speed is thermostatically controlled
Oil Flow of Cooling Pumps
4 × 975 L/min (4 × 258 gal/min)
Features (4)
Cooling system is fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Operator's Cab
Internal Dimensions of Cab - Height
Components (5)
All-round safety glass, armored windshield and sliding side window
Internal Dimensions of Amenity Cab - Width
Components (2)
External sun shields at side windows
Internal Dimensions of Amenity Cab - Length
Internal Dimensions of Cab - Width
Components (10)
Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head and armrests
Board Control System (BCS III)
Electronic monitoring, data logging and diagnostic system for vital signs and service data of engines, hydraulic system and lubrication system, featuring:
– Robust instrument panel including large (12 in) colored touch-screen for intuitive handling
– On-screen PDF documentation (e.g. operating instructions, technical handbook, spare parts catalog, electric circuit diagram)
– On-screen troubleshooting assistance
– Graphic charts of logged data
– Fault memory with storage of related conditions
– USB, Lan (TCP/IP) and CAN BUS interfaces for data export
Operator's Eye Level - Approximately
Components (6)
FOPS (rock guard; approved according to ISO 10262:1998) integrated into cab structure
Components (7)
Fold-away auxiliary seat with safety belt
Components (4)
Windshield with parallel intermittent wiper/washer
Components (3)
Roller blinds at all windows
Components (8)
Joystick controls integrated in independently adjustable seat consoles
Internal Dimensions of Amenity Cab - Height
Internal Dimensions of Cab - Length
Components (9)
Machine access via retractable access stairway, stairway angle approximately 45°, hydraulically operated
Components (1)
Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
Swing System
Swing Ring
Triple race roller bearing with sealed internal gearing
Features (2)
Hydraulic braking of the swing motion by counteracting control
Swing Drive
Six compact planetary transmissions with axial piston motors
Parking Brakes
Wet multiple disc brake, spring-loaded/hydraulically released
Maximum Swing Speed
Features (1)
All race ways of swing ring as well as grease bath for internal gearing supplied by automatic central lubrication system
Features (3)
Closed-loop swing circuit with torque control
Undercarriage
Travel Speed - Two Stages - 1st Stage - Maximum
Components (3)
Automatic hydraulic retarder valve to prevent over-speed on downhill travel
Bottom Rollers - Each Side
Gradeability - Travel Drives - Maximum
Travel Speed - Two Stages - 2nd Stage - Maximum
Parking Brake
Wet multiple disc brake, spring applied/hydraulically released
Maximum Tractive Force
Components (6)
Cast double-grouser combined pad-links with bushings connected by hardened full floating pins
Components (5)
Idlers, bottom rollers and support rollers are connected to the automatic lubrication system
Track Pads - Each Side
Components (4)
Components (2)
Fully hydraulic, self-adjusting track tensioning system with piston accumulator
Support Rollers - Each Side
2 plus a skid plate in between
Travel Drives - Each Side
1 planetary transmission with 2 two-stage axial piston motors
Components (1)
All running surfaces of sprockets, idlers, rollers and pad links, as well as teeth contact areas of sprocket and pad links, are hardened
Automatic Lubrication System
Type (1)
Grease filters (200 μm) between service station and container as well as directly behind grease pump
Capacity - Grease Container
Type (2)
Dual-circuit system with hydraulically driven heavy-duty pump and electronic time relay control to adjust the pause/lube times
Type (4)
Connected to the lubrication system are:
– Raceways of the swing roller bearing
– Pivot points of attachment, bucket and cylinders
– Bottom rollers of undercarriage
Type (3)
System failures displayed by Board Control System
Operating Weights
Shovel - Operating Weight
Note
Other track pads available on request
Shovel - Standard Track Pads
Shovel - Ground pressure
Electrical System - Diesel Drive
Alternators
Components (2)
Emergency stop switches accessible from ground level, in engine module and in operator's cab
Components (1)
Batteries in Series/Parallel Installation
6 × 210 Ah – 12V each; 630 Ah – 24V in total
Working Spotlights
12 × high brightness LED lights
System Voltage
Retractable Service Station
Installation
Retractable service station installed underneath the engine module and easily accessible from ground
Attachment
Type (5)
Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (2)
Pressure-free lowering of boom and stick by means of a float valve
Type (1)
Inspection hole in boom and stick
Type (7)
Boom and stick are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas
Type (3)
Special wear packages for highly abrasive materials on request
Type (6)
Boom and stick are stress-relieved after welding
Type (4)
Catwalks with rails at boom
Shovel attachment with unique TriPower kinematics ensuring the following main features:
– Horizontal automatic constant-angle bucket guidance
– Vertical automatic constant-angle bucket guidance
– Automatic roll-back limiter to prevent material spillage
– Kinematic assistance to hydraulic forces
– Constant boom momentum throughout the entire lift arc
– Crowd force assistance
All buckets are equipped with a wear package consisting of:
– Special liner material covering main wear areas inside and outside of bucket
– Lip shrouds between teeth
– Wing shrouds on side walls
– Heel shrouds at bottom edges
Engine
Net Power - SAE J1349:2011
Gross Power - SAE J1995:2014
Engine Model
Bucket
Bucket Capacity - Face Shovel (heaped 2:1)
Operating Specifications
Bucket Payload
Operating Weight - Face Shovel
Diesel Engines
Total Rated Net Power - ISO 3046/1
3360 kW 1,800 min-1 (4,500 hp 1,800 min-1)
Fuel Tank Capacity
Components (4)
Micro processed engine control
Stroke
Aspiration
Two-stage turbocharged; aftercooled and intercooled
Emissions
Emits equivalent to U.S. EPA Tier 2
Number of Cylinders - Each Engine
Components (1)
Maximum Altitude - Without Deration - Above Sea Level
Components (8)
Additional high-capacity water separator
Bore
Components (2)
Two-stage fuel filter includes water separator
Displacement
Components (3)
Heavy-duty air filters with automatic dust evacuation
Components (6)
Eliminator with centrifuge for engine oil filtration
Make/Model
Components (7)
Engine-oil-change interval of 1,000 hours
Total Rated Net Power - SAE J1995
3360 kW 1,800 min-1 (4,500 hp 1,800 min-1)
Total Rated Net Power - SAE J1349
3360 kW 1,800 min-1 (4,500 hp 1,800 min-1)
Components (5)
Hydraulically driven radiator fan with electronically controlled fan speed
Operator's Cab
Components (12)
Sliding emergency ladder (kick-down type) with ladder cage
Retractable Service Station
Equipped With (1)
Quick couplings for:
– Diesel fuel
– Engine coolant – left/right
– Pump transmission gear oil – left/right
– Swing transmissions gear oil – each
– Engine oil (oil pan) – left/right
– Engine oil (additional tank – optional) – left/right
– Hydraulic oil tank
– Grease container
Hydraulic System with Pump Managing System
Features (1)
Pressure cut-off for main pumps
Pump Managing System contains:
– Electronic load limit control
– Flow on demand from main pumps depending on joystick position
– Automatic regulation of main pumps to zero flow without demand
– Automatic RPM reduction of engine speed during working breaks
– Reduced oil flow of main pumps at high hydraulic oil temperature or engine temperature
Features (2)
Cooling of pump transmission gear oil
Filters
– Full-flow high-pressure filters (100 μm) for the main pumps, installed directly behind each pump
– High pressure filters (100 μm) for the closed swing circuit
– Full-flow filters (10 μm) for the complete return circuit
– Full-flow filters (10 μm) for the cooling return circuit
– Pressure filters (40 μm and 6 μm) for servo circuit
– Transmission oil filters (40 μm)
Retractable Service Station
Equipped With (2)
Operator's Cab
Components (11)
Under roof mounted heating, ventilating and air conditioning system
Retractable Service Station
Equipped With (3)
Indicator lights for fuel tanks left/right full and grease container full
