584 Forwarder

Product Description

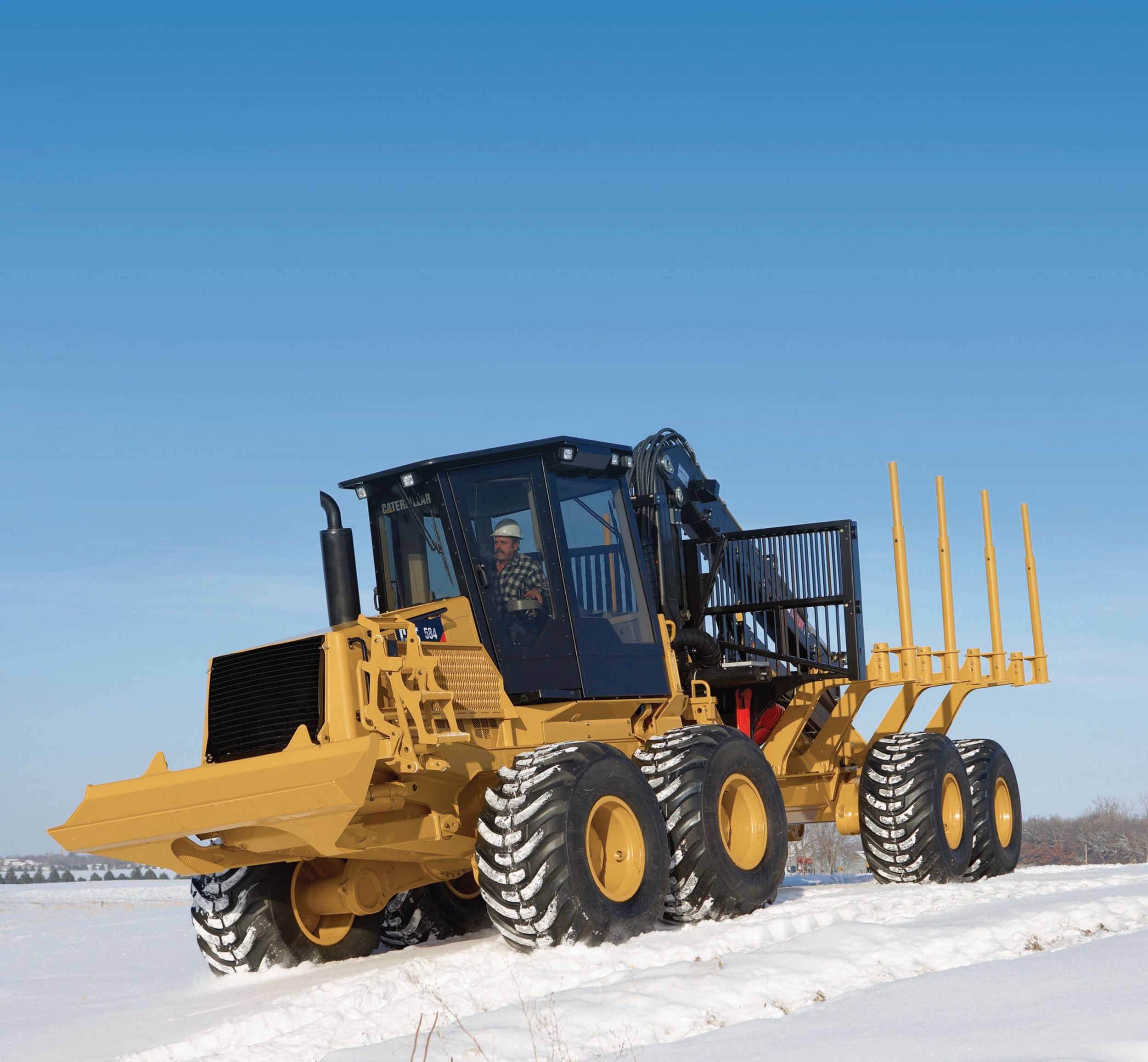

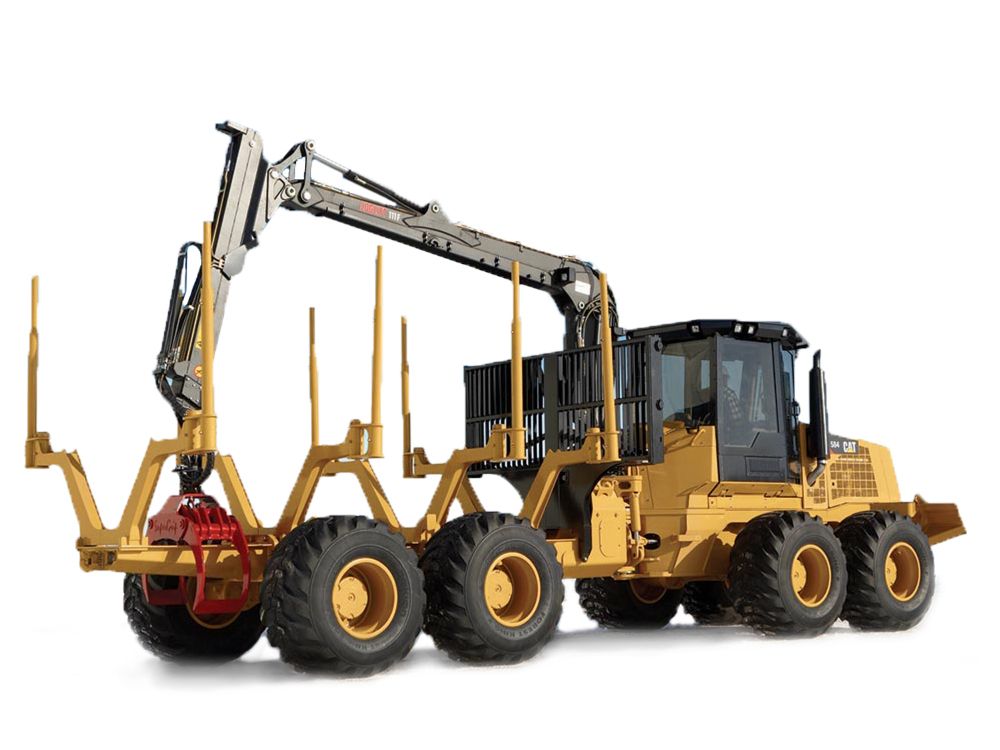

The Cat® 584 forwarder meets the demanding requirements of forest harvesting in many variable applications. These structurally superior units provide unbeaten comfort, controllability, and serviceability to get the job done in a safe, productive, and efficient manner.

Specifications
Us
Metric
Engine
Gross Power
274 hp
204 kW
Engine Model
Cat® C7 ACERT™
Torque
872 lb/ft
1182 N·m
Displacement
439 in³
7.2 l
Operating Specifications
Load Capacity
39683 lb
18000 kg
Loader Reach
25.59 ft
7.8 m
Maximum Speed - 6WD
14 mile/h
22.5 km/h
Load Capacity - 6WD
39683 lb
18000 kg
Tractive Ability - 6WD
48784 lb
217 kN
Steering Angle
42 °
42 °
Maximum Speed - 8WD
14 mile/h
22.5 km/h
Low Speed - 6WD
4.6 mile/h
7.4 km/h
Transmission
Transmission
hydrostatic, 2-speed drop box
Weights
Operating Weight - 6WD
44600 lb
20230 kg
Bunk Area
Optional Bunk Area
67.3 ft²
6.25 m²
Bunk Area
59.3 ft²
5.5 m²
Load Bunks
moveable
Loader and Grapple
Rotator Type
G141
Slewing Angle
380 °
380 °
Slewing Torque - Gross
30240 lb/ft
45 kN·m
Grapple Type - Optional
Epsilon FG43S
Reach
315 in
8 m
Lifting Torque - Gross
111975 lb/ft
159 kN·m
Loader Type
Epsilon X120F
Grapple Type
Epsilon FG37
Hydraulic System
Flow Rate
75 gal/min
284 l/min
Working Pressure - Maximum
3120 psi
21.5 MPa
Service Refill Capacities
Fuel Tank
67.3 gal (US)
255 l
Hydraulic Fluid Reservoir
46 gal (US)
174 l
Standards
ROPS
ISO 3471:1994, ISO 8082:2003
FOPS
ISO 3449:2005 (LEVEL II), ISO 8083:2006
OPS
ISO 8084:2003, SAE J1084, SEP2002, BC WCB G603, MAR90
Wheels/Tires
Size - 6WD
700/70 × 34 (front), 750/55 × 26.5 (rear)
Standard/Optional

Standard Equipment

Electrical
Operator Environment
Power Train
Hydraulics
Brake System
Loader
Load Deck

Optional Equipment

Wheels/Tires
