501/501HD Track Harvester

Product Description

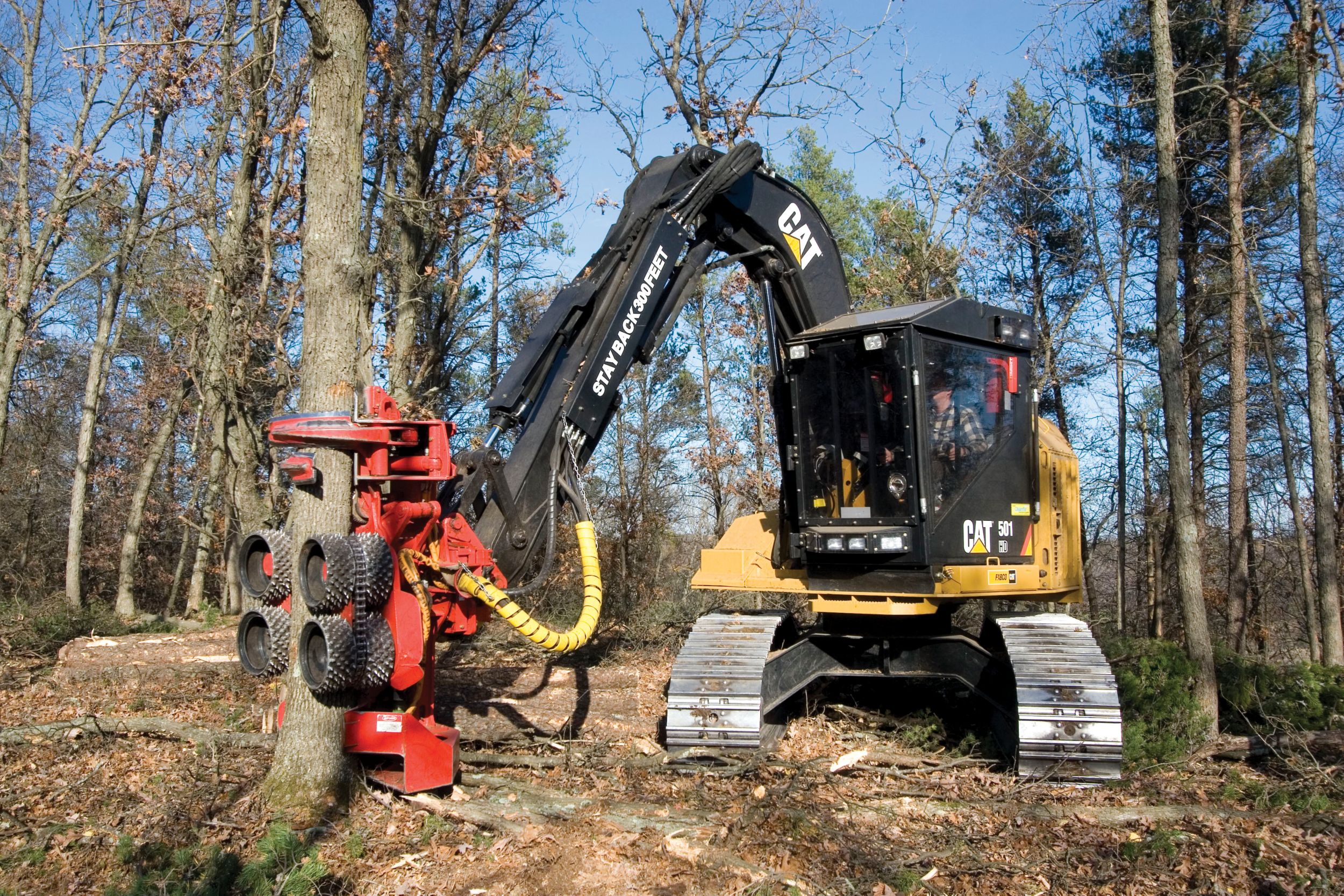

Cat® track harvesters are equipped with dependable Cat engines, load sensing hydraulics and factory installed attachments. The forward-mounted cab and rear engine placement give the operator excellent visibility over the entire harvest area. The unique front entry cab allows for easy entry and exit and the cab tilts for servicing. The telescoping boom's V-shaped bottom extends the life of the wear pads and minimizes side-to-side movement as the boom telescopes in and out.

Specifications
Us
Metric
Engine
Gross Power
163 hp
122 kW
Engine Model
Cat® C6.6 ACERT™ Tier 3
Gross Power - 1,800 rpm
163 hp
122 kW
Hydraulic System
Hydraulic System Pressure
5000 psi
344 bar
Pump Size - Carrier and Implement
8.54 in³
140 cm³
Hydraulic Oil Flow at 2,200 rpm
81 gal/min
307 l/min
Operating Specifications
Maximum Reach - With Head
27 ft
8.23 m
Travel Speed - High
1.9 mile/h
3 km/h
Maximum Tractive Effort
43400 lb
193 kN
Swing Torque
30388 ft-lb
41200 N·m
Swing Speed
7 r/min
7 r/min
Travel Speed - Low
1.1 mile/h
1.8 km/h
Service Refill Capacities
Swing Drive
1 gal (US)
3.78 l
Hydraulic Tank
60 gal (US)
228 l
Engine Oil
4 gal (US)
15 l
Cooling System
6.25 gal (US)
23.6 l
Hydraulic System
60 gal (US)
227 l
Fuel Tank
100 gal (US)
378 l
Weights
Operating Weight - Without Head
40000 lb
18000 kg
Operating Weight - Without Attachment
40000 lb
18000 kg
Standards
FOPS/OPS/ROPS
Cab meets FOPS/OPS/ROPS requirements
Undercarriage
Track Length
156 in
3960 mm
Number of Rollers
2 upper, 8 lower
Final Drive
709BC
Size/Pitch (D-5 size)
7.5 in
190 mm
Ground Clearance
26 in
660 mm
Track Gauge
88 in
2235 mm
Reach
Telescopic Boom Reach - Pin
26 ft
7.93 m
Fixed Linkage Boom Reach - Pin
19.85 ft
6.05 m
Power Train
Gross Power - 1,800 rpm
163 hp
122 kW
Displacement
403 in³
6.6 l
Rated Power - 2,200 rpm
156 hp
116.5 kW
Torque - Maximum
504 ft-lb
683 N·m
Engine Model
Cat® C6.6 ACERT™
Operating Weights
Operating Weight - Without Head
40000 lb
18000 kg
Ground Pressure - Standard Pads
7.11 psi
49 kPa
Operating Weight - With Attachment (est.)
45000 lb
20411 kg
Boom System
Telescopic Boom Reach - Maximum
26 ft
7.93 m
Reach with Dangle Head on Telescopic Boom
27 ft
8.23 m
Reach with PF-48 Fixed Head on Fixed Linkage
23.3 ft
7.1 m
Fixed Linkage Reach - Maximum
19.8 ft
6.04 m
Fixed Linkage Lift Capacity - Gross - Maximum Reach
8500 lb
3856 kg
Telescopic Boom Lift Capacity - Gross - Maximum Reach
5071 lb
2300 kg
Shipping Dimensions*
Height
136 in
3454 mm
Width
112 in
2840 mm
Standard/Optional

Standard Equipment

ELECTRICAL
OPERATOR ENVIRONMENT
POWER TRAIN
HYDRAULICS
UNDERCARRIAGE
BOOMS AND STICKS
ANTIFREEZE

Optional Equipment

TRACK SYSTEMS
OTHER EQUIPMENT
