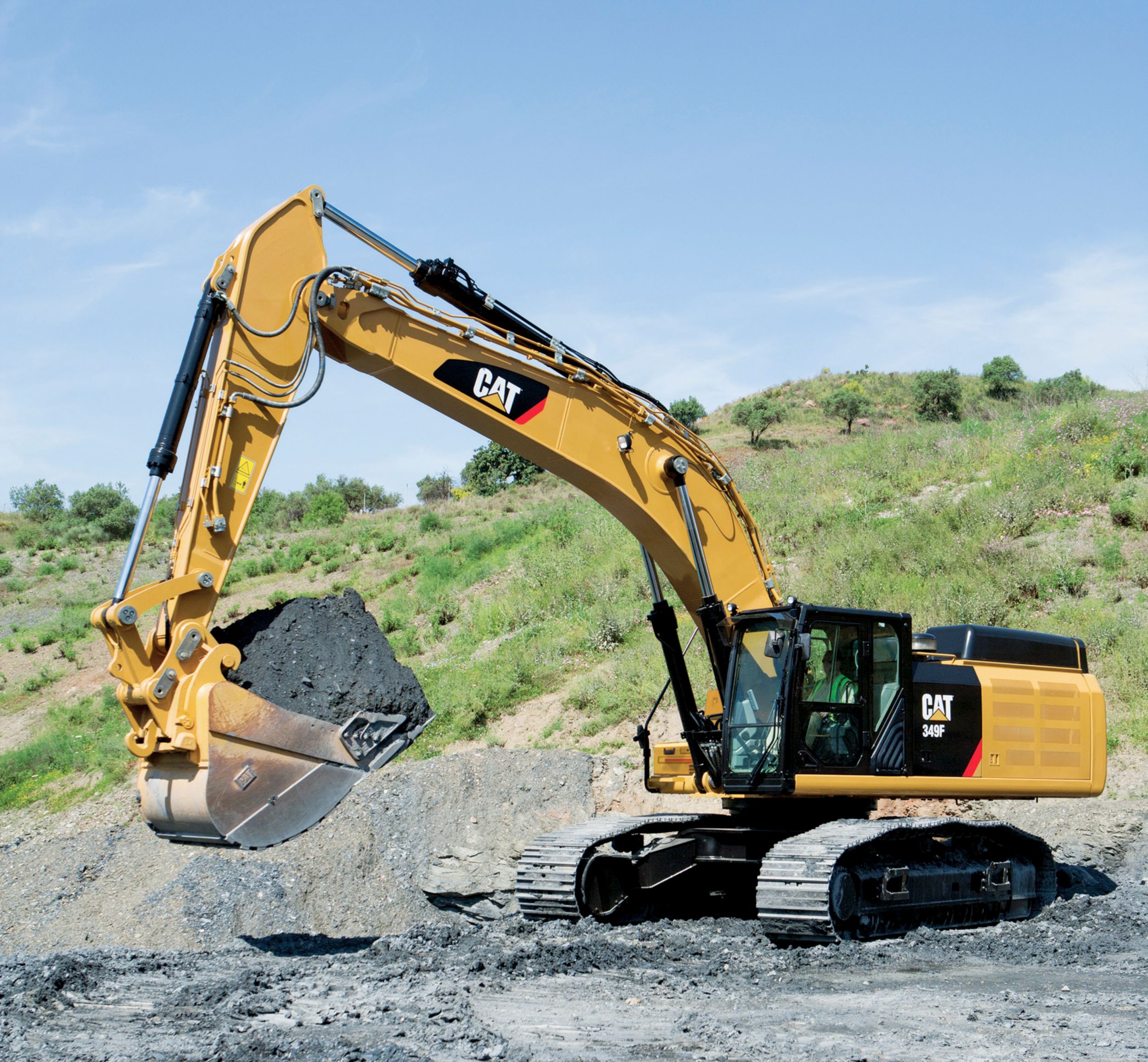

349F Hydraulic Excavator

360 View

Product Description

The 349F is built to keep your production numbers up and your owning and operating costs down. Not only does the machine's C13 engine meet U.S. EPA Tier 4 Final emission standards, but it does so while giving you all the power, fuel efficiency, and reliability you need to succeed. Where the real power comes in is through the hydraulic system. You can literally move tons of material all day long with a great deal of speed and precision. When you add in a quiet operator environment that keeps you comfortable and productive, ground-level service points that make your routine maintenance easy, and multiple Cat work tools that help you take on a variety of jobs, you simply won't find a better 49-ton machine. If productivity, comfort, versatility, and fuel efficiency are what you want, the 349F excavator is what you need.

Specifications
Us
Metric
Engine
Engine Model
Cat® C13 ACERT™
Net Flywheel Power
396 hp
295 kW
Net Power - SAE J1349:2011
417 hp
311 kW
Bore
5.12 in
130 mm
Stroke
6.18 in
157 mm
Displacement
763 in³
12.5 l
Gross Power - SAE J1995:2014
432 hp
322 kW
Weights
Operating Weight
117500 lb
53300 kg
Minimum Weight
107200 lb
48650 kg
Track
Number of Shoes - Each Side - Long Fix Undercarriage
52
Number of Track Rollers - Each Side - Long Fix Undercarriage
9
Number of Carrier Rollers - Each Side - Long Fix Undercarriage
2
Swing Mechanism
Swing Speed
8.7 r/min
8.7 r/min
Drive
Maximum Travel Speed
2.9 mile/h
4.7 km/h
Maximum Drawbar Pull
75300 lb
335 kN
Hydraulic System
Main System - Maximum Flow - Total
203 gal/min
770 l/min
Swing System - Maximum Flow
102 gal/min
385 l/min
Maximum Pressure - Travel
5076 psi
35000 kPa
Maximum Pressure - Swing
3989 psi
27500 kPa
Pilot System - Maximum Flow
7.1 gal/min
27 l/min
Pilot System - Maximum Pressure
598 psi
4120 kPa
Boom Cylinder - Bore
6.69 in
170 mm
Boom Cylinder - Stroke
60 in
1524 mm
Stick Cylinder - Bore
7.48 in
190 mm
Stick Cylinder - Stroke
69.21 in
1758 mm
TB Family Bucket Cylinder - Bore
6.3 in
160 mm
TB Family Bucket Cylinder - Stroke
53.39 in
1356 mm
UB Family Bucket Cylinder - Bore
6.69 in
170 mm
UB Family Bucket Cylinder - Stroke
54.96 in
1396 mm
Maximum Pressure - Equipment - Lift Mode
5512 psi
38000 kPa
Maximum Pressure - Equipment
5076 psi
35000 kPa
Service Refill Capacities
Fuel Tank Capacity
190 gal (US)
720 l
Cooling System
13.2 gal (US)
50 l
Swing Drive - Each
2.6 gal (US)
10 l
Final Drive - Each
4 gal (US)
15 l
Hydraulic System - Including Tank
150.6 gal (US)
570 l
Hydraulic Tank
107.5 gal (US)
407 l
Engine Oil - With Filter
10 gal (US)
38 l
Sound Performance
Spectator Noise - ISO 6395
106 dB(A)
106 dB(A)
Operator Noise (Closed) - ISO 6396
69 dB(A)
69 dB(A)
Standards
Brakes
ISO 10265
Cab/FOGS
SAE J1356
Cab - ROPS
ISO 12117-2
Weights
Maximum Weight
117500 lb
53300 kg
Standard/Optional

Standard Equipment

ENGINE
HYDRAULIC SYSTEM
CAB
UNDERCARRIAGE
ELECTRICAL
LIGHTS
SECURITY

Optional Equipment

ENGINE
HYDRAULIC SYSTEM
CAB
UNDERCARRIAGE
COUNTERWEIGHT
FRONT LINKAGE
LIGHTS
SECURITY
TECHNOLOGY
