340 UHD Ultra High Demolition Hydraulic Excavator

Video

Product Description

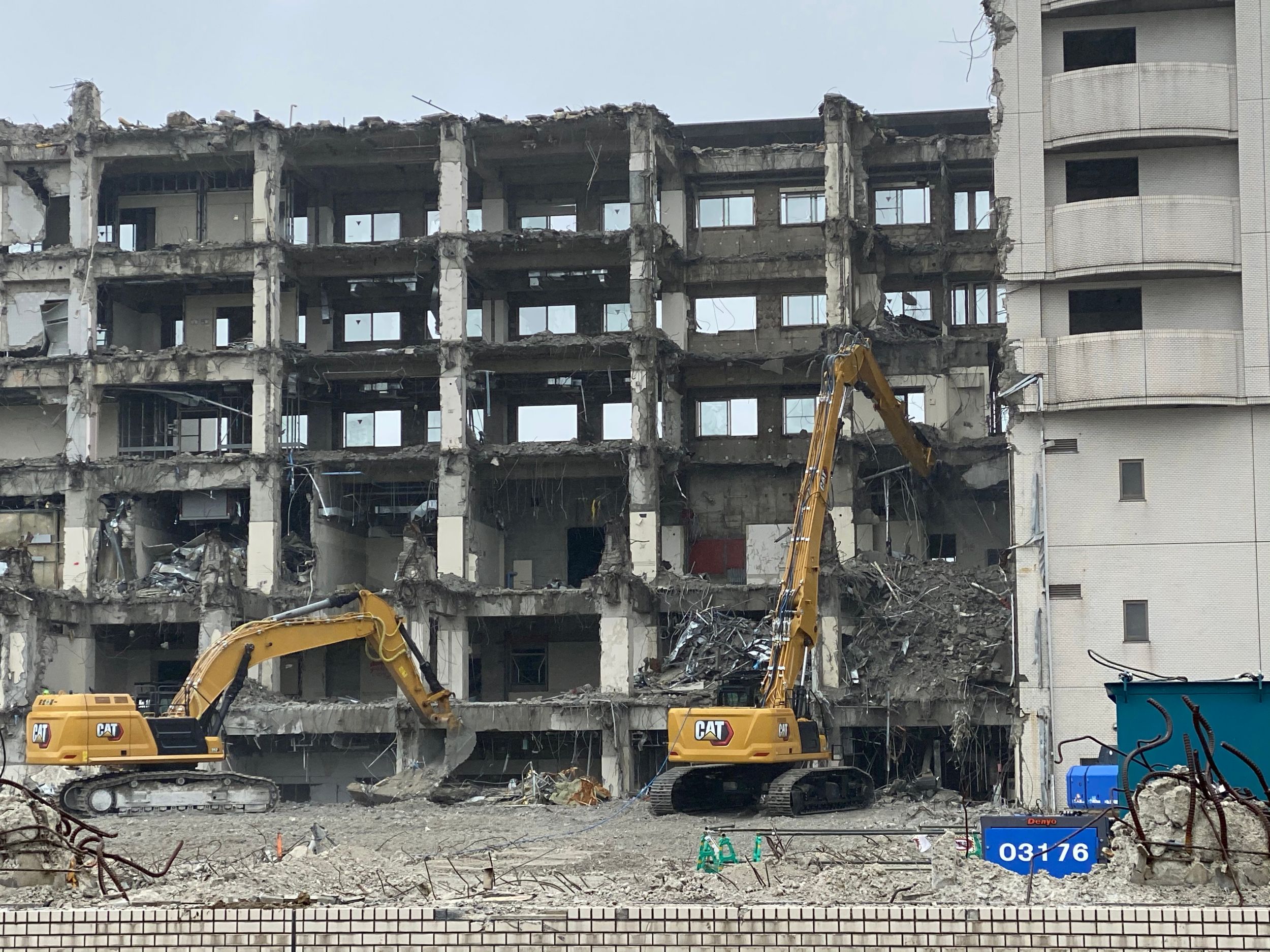

The Cat® 340 UHD provides optimum machine solutions for building demolition up to 8 stories. With its unique coupling system, you can switch between two lengths of Ultra High Demolition fronts and two types of Retrofit booms and sticks with no special tools in 15 minutes. You simply won’t find a better 50-ton class choice for demolition.

Specifications

Metric

Engine

Engine Model

Cat C9.3B

Net Power - ISO 9249

346 hp

258.3 kW

Engine Power - ISO 14396 (DIN)

351 hp (metric)

Engine Power - ISO 14396:2002

347 hp

259 kW

Net Power - ISO 9249 (DIN)

352 hp (metric)

Bore

5 in

115 mm

Stroke

6 in

149 mm

Displacement

568 in³

9.3 l

Biodiesel Capability

Up to B20¹

Emissions

Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.

Note (1)

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.

Note (2)

¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Hydraulic System

Main System - Maximum Flow

560 l/min (148 gal/min)

Maximum Pressure - Equipment

5076 psi

35000 kPa

Maximum Pressure - Equipment - Lift Mode

5511 psi

38000 kPa

Maximum Pressure - Travel

5076 psi

35000 kPa

Maximum Pressure - Swing

4264 psi

29400 kPa

Swing Mechanism - UHD Fronts

Swing Speed

4.09 r/min

Swing Mechanism

Swing Speed

8 r/min

Maximum Swing Torque

105000 ft·lbf

143 kN·m

Weights

Operating Weight

122600 lb

55600 kg

Note (1)

Hydraulic Variable Gauge undercarriage, 22 m (72'2") UHD front, 600 mm (24") Heavy Duty (HD) triple grouser shoes and 9.0 mt (19,842 lb) counterweight. No work tool.

Machine Weight - Retrofit Configuration

118600 lb

53800 kg

Note (2)

Hydraulic Variable Gauge undercarriage, Retrofit boom, R3.2DB (10'6") stick, General Duty (GD) 2.27 m³ (2.97 yd³) bucket, 600 mm (24") HD triple grouser shoes and 9.0 mt (19,842 lb) counterweight.

UHD in Cradle

18700 lb

8480 kg

Retrofit Boom in Cradle - R3.9 DB Stick

13710 lb

6220 kg

Retrofit Boom in Cradle - R3.2 DB Stick

13340 lb

6050 kg

Retrofit Boom in Cradle - R2.8 DB Stick

13120 lb

5950 kg

2-Piece Retrofit Boom in Cradle - R3.2 DB Stick

17440 lb

7910 kg

Service Refill Capacities

Fuel Tank Capacity

159 gal (US)

600 l

Cooling System

11 gal (US)

40 l

Engine Oil

9 gal (US)

32 l

Swing Drive

5 gal (US)

18 l

Final Drive - Each

2 gal (US)

8 l

Hydraulic System - Including Tank

145 gal (US)

550 l

Hydraulic Tank

43 gal (US)

161 l

DEF Tank

21 gal (US)

80 l

Dimensions

Note (1)

22 m (72'2") UHD Front

Shipping Height - Top of Cab

11.1 ft

3383 mm

Cab Height - With OPG

11.8 ft

3585 mm

Shipping Length

49.9 ft

15160 mm

Tail Swing Radius

11.6 ft

3521 mm

Counterweight Clearance

4.6 ft

1397 mm

Ground Clearance

1.7 ft

510 mm

Track Length

18.9 ft

5770 mm

Track Length to Center of Rollers

15.6 ft

4770 mm

Working Gauge - Extended Position

11.1 ft

3400 mm

Shipping Gauge - Retracted Position

7.8 ft

2400 mm

Transport Width

10.7 ft

3255 mm

Machine Length - without Front, with Counterweight

23.3 ft

7077 mm

Machine Length - without Front and Counterweight

22.9 ft

6954 mm

Track Width - Extended

13.1 ft

4000 mm

Track Width - Retracted

9.8 ft

3000 mm

Note (2)

600 mm (24") Track Shoes

Working Ranges and Forces

Maximum Pin Height at Stick Nose

72.2 ft

22 m

Maximum Weight at Stick Nose

8160 lb

3700 kg

Maximum Working Pin Height at Stick Nose - 1/2

61 ft

18590 mm

Maximum Working Reach at Stick Nose - 1/2

38.4 ft

11680 mm

Maximum Height at Stick Nose in Max Reach Position

41.5 ft

12640 mm

Maximum Reach at Stick Nose

44.4 ft

13550 mm

Note (1)

22 m (72' 2") UHD Front (Over-the-Front)

Working Ranges and Forces - Retrofit Boom - Straight

Note 1

Straight - R3.2 m (10' 6") Stick (Over-the-Front) - HVG Undercarriage

Bucket

GD 2.27 m³ (2.97 yd³)

Maximum Pin Height at Stick Nose

39.8 ft

12.13 m

Maximum Weight at Stick Nose

9260 lb

4200 kg

Maximum Height at Stick Nose in Max Reach Position

7.6 ft

2310 mm

Maximum Reach at Stick Nose

34.8 ft

10620 mm

Maximum Digging Depth

16.1 ft

4910 mm

Maximum Reach - Ground Level

39.9 ft

12160 mm

Maximum Loading Height

34 ft

10370 mm

Minimum Loading Height

15.7 ft

4790 mm

Bucket Digging Force - ISO

47160 lbf

210 kN

Stick Digging Force - ISO

37300 lbf

166 kN

Working Ranges and Forces - Retrofit Boom - Bent

Note 1

Bent - R3.2DB (10'6") Stick - HVG Undercarriage

Bucket

GD 2.27 m³ (2.97 yd³)

Maximum Digging Depth

21.4 ft

6520 mm

Maximum Reach - Ground Level

36.7 ft

11180 mm

Maximum Cutting Height

35.4 ft

10790 mm

Maximum Loading Height

24.9 ft

7600 mm

Minimum Loading Height

10.4 ft

3180 mm

Bucket Digging Force - ISO

47160 lbf

210 kN

Stick Digging Force - ISO

37300 lbf

166 kN

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg (2.2 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons).

Standard/Optional

Standard Equipment

NOTE

CAB

CAT TECHNOLOGY

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

SERVICE AND MAINTENANCE

UNDERCARRIAGE AND STRUCTURES

Optional Equipment

NOTE

BOOMS AND STICKS

CAB

CAT TECHNOLOGY

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

SERVICE AND MAINTENANCE

UNDERCARRIAGE AND STRUCTURES
