325 Hydraulic Excavator

360 View Video

Product Description

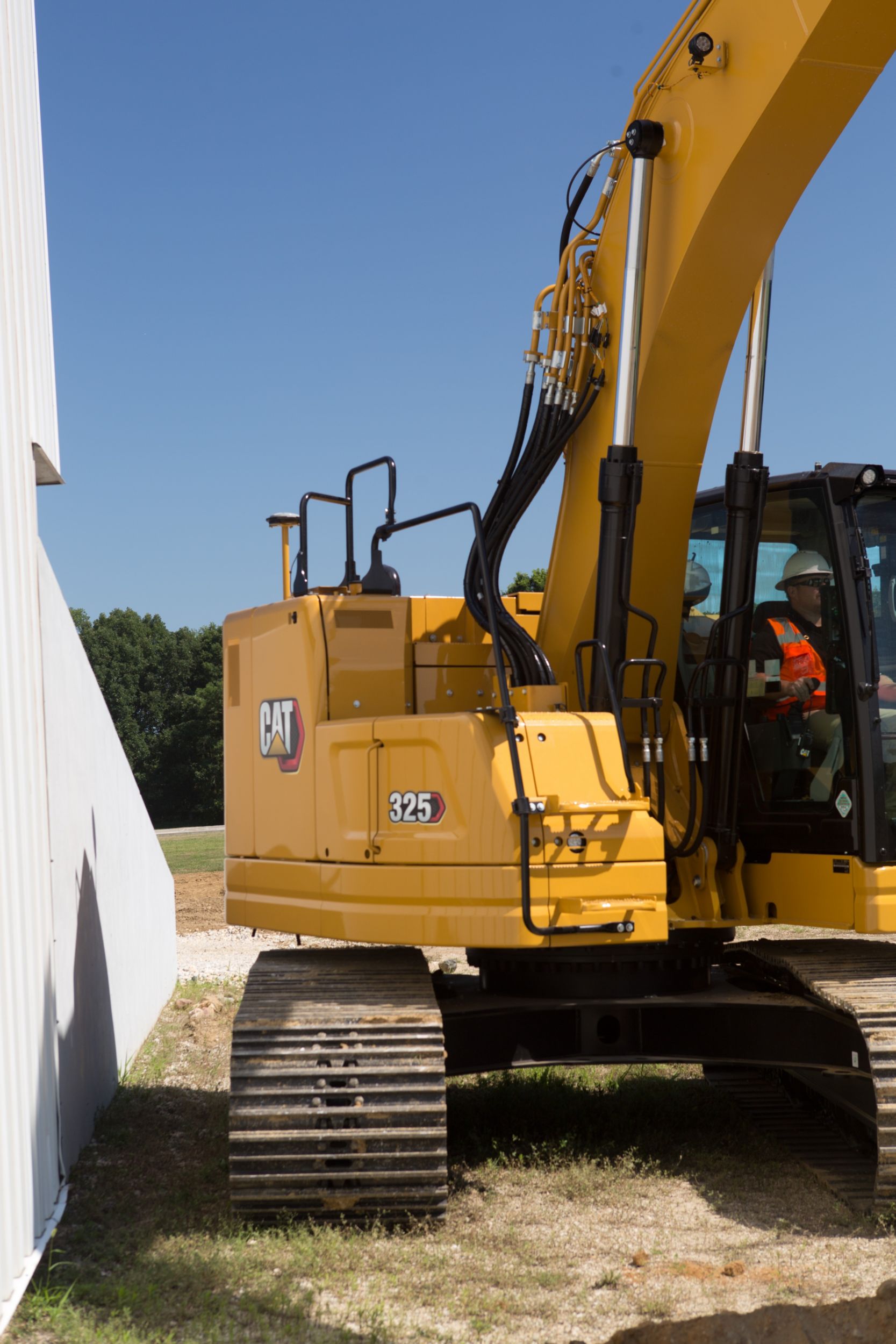

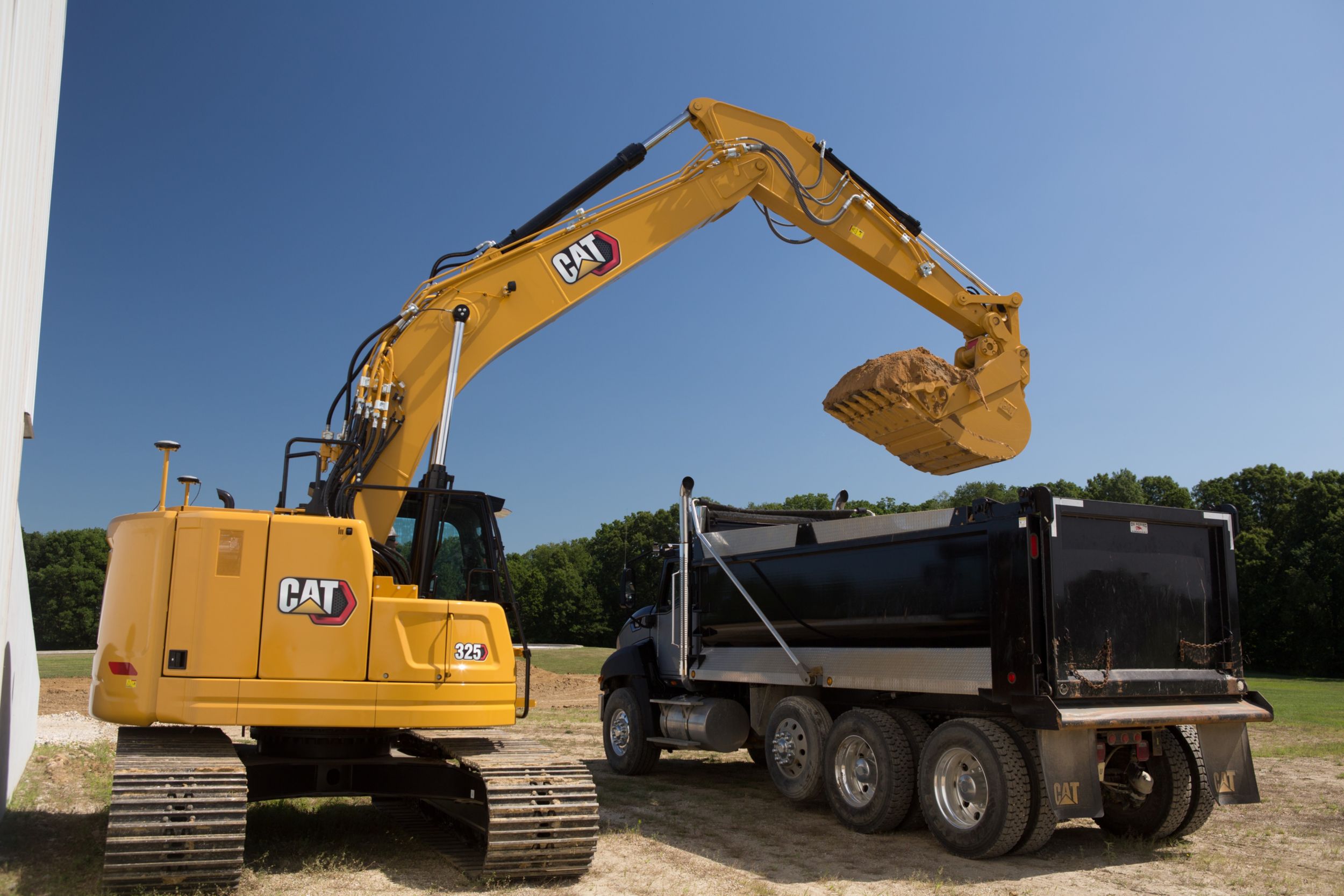

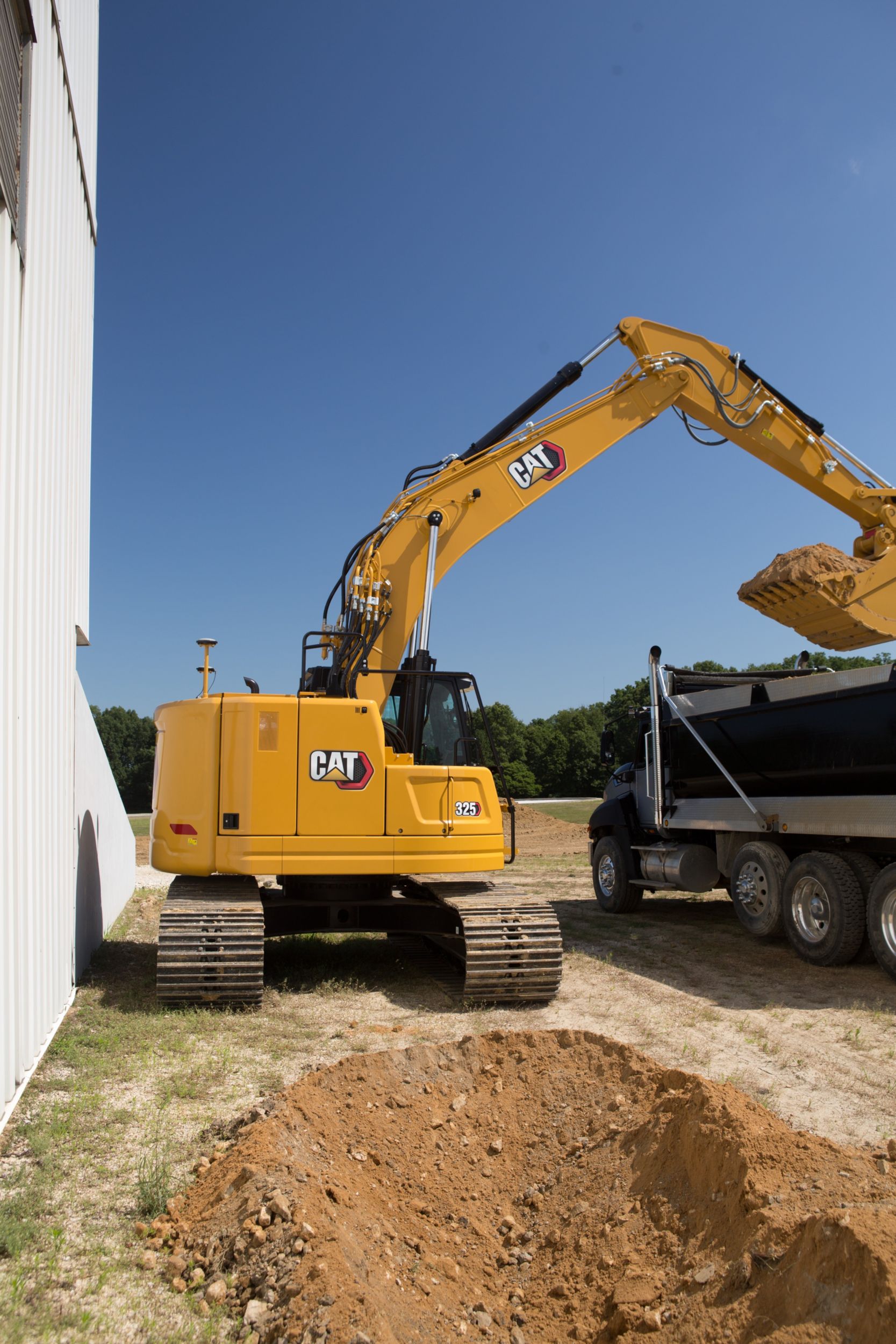

The Cat® 325 Excavator brings premium performance with simple-to-use technologies like Cat Grade with 2D, Grade Assist, Lift Assist and Payload – all standard equipment from the factory to help boost operator efficiencies. Combine these features with a compact radius design for working in tight spaces, an ergonomic cab, extended maintenance intervals that help lower your maintenance costs, and a power system that helps reduce fuel consumption and you have a low-cost-per-unit-of-production excavator that’s perfect for medium- to heavy-duty applications. An optional blade allows for fast job site cleaning and leveling, and an optional heavy counterweight helps maximize the performance of this compact radius machine.

Specifications

Metric

Engine

Net Power - ISO 9249

172 hp

128.5 kW

Net Power - ISO 9249 (DIN)

175 hp (metric)

Engine Model

Cat C4.4

Engine Power - ISO 14396:2002

174 hp

129.4 kW

Engine Power - ISO 14396 (DIN)

176 hp (metric)

Bore

4 in

105 mm

Stroke

5 in

127 mm

Displacement

269 in³

4.4 l

Biodiesel Capability

Up to B20¹

Emissions

Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.

Note (1)

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.

Note (2)

¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Hydraulic System

Main System - Maximum Flow - Implement

429 L/min (113 gal/min)

Maximum Pressure - Equipment - Normal

5075 psi

35000 kPa

Maximum Pressure - Equipment - Lift Mode

5510 psi

38000 kPa

Maximum Pressure - Travel

5075 psi

35000 kPa

Maximum Pressure - Swing

3988 psi

27500 kPa

Swing Mechanism

Swing Speed

11.12 r/min

Maximum Swing Torque

60360 ft·lbf

82 kN·m

Weights

Operating Weight

62800 lb

28500 kg

Note

Long undercarriage, Reach boom, R2.9B1 (9'6") stick, Heavy Duty (HD) 1.19 m³ (1.56 yd³) bucket, 790 mm (31") HD triple grouser shoes and 8300 kg (18,300 lb) counterweight.

Service Refill Capacities

Fuel Tank Capacity

82.7 gal (US)

313 l

Cooling System

3.1 gal (US)

11.8 l

Engine Oil

4 gal (US)

15 l

Swing Drive

1.5 gal (US)

5.5 l

Final Drive - Each

1.2 gal (US)

4.5 l

Hydraulic System - Including Tank

60.8 gal (US)

230 l

Hydraulic Tank

29.4 gal (US)

111 l

DEF Tank

6.9 gal (US)

26 l

Dimensions

Boom

Reach 5.7 m (18'8")

Stick

Reach 2.9 m (9'6")

Bucket

HD 1.19 m³ (1.56 yd³)

Shipping Height - Top of Cab

10.1 ft

3080 mm

Handrail Height

10.5 ft

3190 mm

Shipping Length

29.2 ft

8890 mm

Tail Swing Radius

5.11 ft

1810 mm

Counterweight Clearance

3.3 ft

980 mm

Ground Clearance

1.5 ft

440 mm

Length to Center of Rollers

12 ft

3650 mm

Track Length

14.7 ft

4460 mm

Track Gauge

7.1 ft

2380 mm

Transport Width - 600 mm (24”) Shoes

9.8 ft

2980 mm

Transport Width - 790 mm (31 in) Shoes

10.4 ft

3170 mm

Working Ranges & Forces

Maximum Digging Depth

22 ft

6700 mm

Boom

Reach 5.7 m (18'8")

Stick

Reach 2.9 m (9'6")

Bucket

HD 1.19 m³ (1.56 yd³)

Maximum Reach at Ground Level

32.1 ft

9780 mm

Maximum Cutting Height

36 ft

10970 mm

Maximum Loading Height

25.11 ft

7900 mm

Minimum Loading Height

9.9 ft

2980 mm

Maximum Depth Cut for 2440 mm (8 ft) Level Bottom

21.5 ft

6520 mm

Maximum Vertical Wall Digging Depth

16 ft

4880 mm

Bucket Digging Force - ISO

33720 lbf

150 kN

Stick Digging Force - ISO

23830 lbf

106 kN

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 kg (1.8 lb) of refrigerant which has a CO2 equivalent of 1.144 metric tonnes (1.261 tons).

Sustainability

Recyclability

98%

Standard/Optional

Standard Equipment

NOTE

CAB

CAT TECHNOLOGIES

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

SERVICE AND MAINTENANCE

UNDERCARRIAGE AND STRUCTURES

Optional Equipment

NOTE

BOOMS AND STICKS

CAB

CAT TECHNOLOGIES

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

UNDERCARRIAGE AND STRUCTURES
