265 Compact Track Loader

360 View Video

Product Description

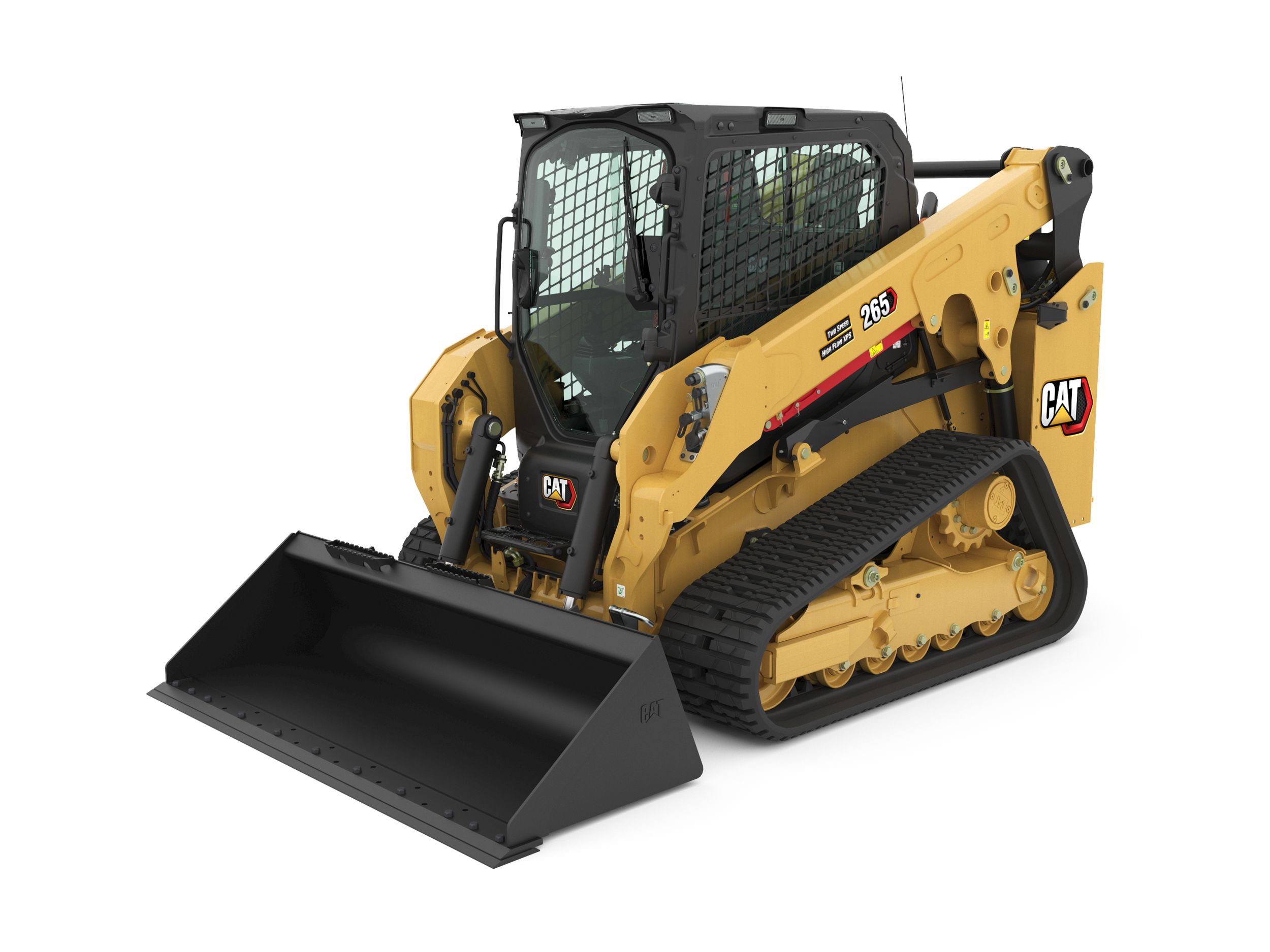

The Cat® 265 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard torsion suspension undercarriage system provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.

Specifications
Us
Metric
Engine
Gross Power - SAE J1995
74 hp
55.2 kW
Bore
4.3 in
110 mm
Displacement
171 in²
2.8 l
Net Power - ISO 9249
73 hp
54.4 kW
Net Power - SAE 1349
74 hp
54.9 kW
Peak Torque at 1,360 rpm SAE J1995
280 lb/ft
380 N·m
Engine Model
Cat® C2.8TA (turbo after-cooled)
Stroke
3.5 in
90 mm
Hydraulic System
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
60.9 hp
45.4 kW
Hydraulic Flow - High Flow - Loader Hydraulic Flow
30 gal/min
113 l/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
3500 psi
24130 kPa
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
80.7 hp
60.2 kW
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
34 gal/min
129 l/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
4061 psi
28000 kPa
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
46.4 hp
34.6 kW
Hydraulic Flow - Standard - Loader Hydraulic Flow
23 gal/min
86 l/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure
3500 psi
24130 kPa
Weights*
Operating Weight
10492 lb
4759 kg
Counterweight Adds to Operating Weight
276 lb
125 kg
Counterweight Adds to Operating Weight - ROC (35%)
173 lb
78 kg
Counterweight Adds to Operating Weight - Tip Load
494 lb
224 kg
Enclosed Cab Adds to Operating Weight
180 lb
82 kg
Enclosed Cab Adds to Operating Weight - ROC (35%)
75 lb
34 kg
Enclosed Cab Adds to Operating Weight - Tip Load
214 lb
97 kg
Note
*Operating Weight, Operating Specifications, and Dimensions are based on 2036 mm (80") low profile bucket with bolt on cutting edge, 450 mm (17.7") wide track, 75 kg (165 lb) operator, open canopy, mechanical suspension seat, HD battery with disconnect, standard flow hydraulics, manual coupler, and full fluids. No external counterweights, and no dual self-level/return-to-dig/work tool positioner
Operating Weight - ROC (35%)
2823 lb
1280 kg
Operating Weight - ROC (50%)
4033 lb
1829 kg
Operating Weight - Tip Load
8066 lb
3659 kg
Service Refill Capacities
Cooling System
2.8 gal (US)
10.7 l
Engine Crankcase
2.2 gal (US)
8.2 l
Fuel Tank
31.7 gal (US)
120 l
Hydraulic System
9.7 gal (US)
36.8 l
Hydraulic Tank
6.9 gal (US)
26 l
Operating Specifications
Rated Operating Capacities - 35% Tipping Load
2823 lb
1280 kg
Breakout Force - Lift Cylinder
6739 lb
3057 kg
Breakout Force - Tilt Cylinder
8680 lb
3937 kg
Ground Contact Area - With 450 mm/17.7 in Track
2268 in²
1.46 m²
Ground Pressure - With 450 mm/17.7 in Track
4.6 psi
31.9 kPa
Rated Operating Capacities - 50% Tipping Load
4033 lb
1829 kg
Rated Operating Capacity with Optional Counterweight
2996 lb
1359 kg
Tipping Load
8066 lb
3659 kg
Dimensions
Bucket Pin Height - Carry Position
8.4 in
213 mm
Bucket Pin Height - Maximum Lift
132 in
3354 mm
Bucket Pin Reach - Maximum Lift
9.8 in
249 mm
Clearance at Maximum Lift and Dump
104.5 in
2655 mm
Departure Angle
28.2°
Ground Clearance
8.5 in
216 mm
Height - Top of Cab
83.3 in
2115 mm
Length - Track on Ground
64 in
1626 mm
Length - With Bucket on Ground
140.9 in
3580 mm
Length - Without Bucket
116.1 in
2950 mm
Maximum Overall Height
164.3 in
4173 mm
Maximum Reach - With Arms Parallel to Ground
46.7 in
1187 mm
Overall Length - Track
83.7 in
2126 mm
Rack Back Angle - Maximum Height
85.3°
Reach at Maximum Lift/Dump
25.1 in
638 mm
Roll Back Angle
27°
Turning Radius from Center - Bucket (racked)
87.8 in
2229 mm
Turning Radius from Center - Coupler
56.5 in
1436 mm
Turning Radius from Center - Machine Rear
68.5 in
1741 mm
Vehicle Width (450 mm/17.7 in tracks)
75.8 in
1925 mm
Maximum Dump Angle
46.4°
Cab
FOPS
ISO 3449:2005 Level I
ROPS
ISO 3471:2008
Power Train
Travel Speed - Forward or Reverse - One Speed
5 mile/h
8 km/h
Travel Speed - Forward or Reverse - Two Speed
8.1 mile/h
13 km/h
Standard/Optional

Standard Equipment

STANDARD EQUIPMENT
PERFORMANCE PACKAGES
COMFORT PACKAGES
TECHNOLOGY PACKAGES
RADIO
PRODUCT LINK™
COOLING FAN
GUARDING AND SEALING PACKAGES
ELECTRICAL
OPERATOR ENVIRONMENT
HYDRAULICS
POWER TRAIN
UNDERCARRIAGE
FRAME
OTHER

Optional Equipment

OPTIONAL EQUIPMENT
