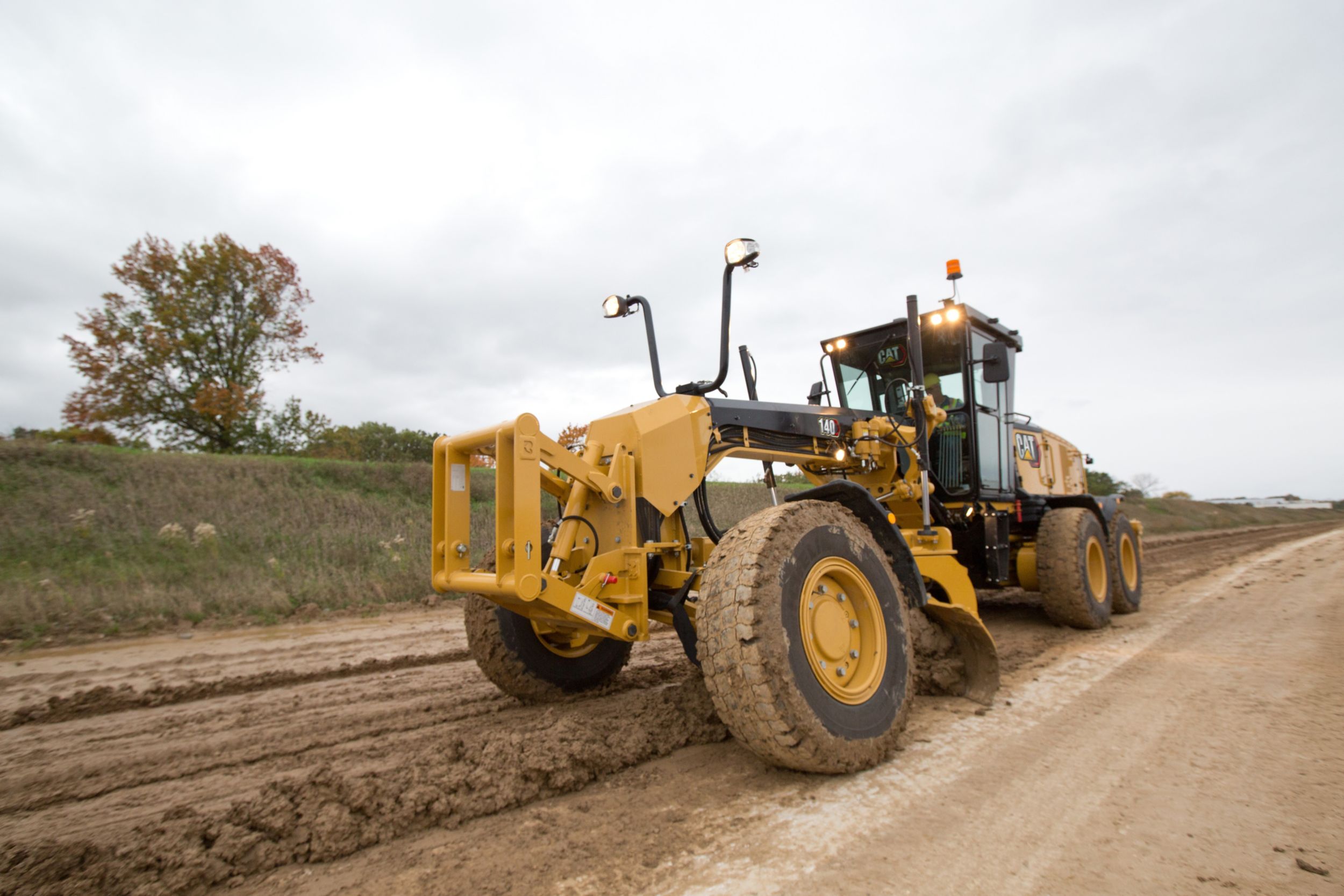

140 Motor Grader LVR

360 View Video

Product Description

The Cat® 140 uses 45 years of refined steering wheel and lever controls experience for more precise grading. With a range of technology options, you can improve grading accuracy and save on materials. With lowered maintenance intervals, the 140 Motor Grader sets the pace for low operating costs, while maintaining productivity and efficiency.

Specifications
Us
Metric
Engine
Net Power - EEC 80/1269
250 hp
186 kW
Weights
Operating Weight - Typically Equipped
44613 lb
20236 kg
Moldboard
Blade Width
12 ft
3.7 m
Air Conditioning System
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
Moldboard
Cutting Edge
6 in
152 mm
Engine
Net Power - ISO 9249/SAE J1349
250 hp
186 kW
Dimensions
Basic Blade Width
140 in
3556 mm
Moldboard
Arc Radius
16.3 in
413 mm
Service Refill
Hydraulic System
14.5 gal (US)
55 l
Engine
Standard Capability
109 °F
43 °C
Machine Weight
Note
*Typically equipped with push block and ripper.
Engine
Engine RPM
2,000
Dimensions
Length of Machine*
397.6 in
10100 mm
Service Refill
Engine Crankcase
7.9 gal (US)
30 l
Circle Drive
1.8 gal (US)
7 l
Dimensions
Width
97.6 in
2480 mm
Service Refill
Fuel Tank
100 gal (US)
378 l
Engine
Engine Model
Cat C9.3
Moldboard
Throat Clearance
6.5 in
166 mm
Blade Range
Maximum Lift Above Ground
18.9 in
480 mm
Engine
Bore
4.5 in
115 mm
Dimensions
Note
*Typically equipped with push block and ripper.
Moldboard
End Bit
6 in
152 mm
Engine
Emissions
U.S. EPA Tier 4 Final/EU Stage V
Displacement
567.5 in³
9.3 l
Service Refill
Front Wheel Spindle Bearing - Each
0.13 gal (US)
0.5 l
Machine Weight
All-Wheel Drive (AWD) Weight
44613 lb
20236 kg
Engine
Stroke
5.9 in
149 mm
Number of Cylinders
6
Blade Range
Maximum Depth of Cut
28.9 in
735 mm
Dimensions
Maximum Height
132 in
3354 mm
Engine
Torque Rise - ISO 9294
44%
Standard/Optional

Standard Equipment

NOTE
CAB
CAT TECHNOLOGY
ENGINE
DRAWBAR CIRCLE MOLDBOARD
SAFETY
VERSATILITY

Optional Equipment

NOTE
CAB
CAT TECHNOLOGY
ENGINE
DRAWBAR CIRCLE MOLDBOARD
SAFETY
VERSATILITY
