FM568 GF/FM568 LL

360 View Video

Product Description

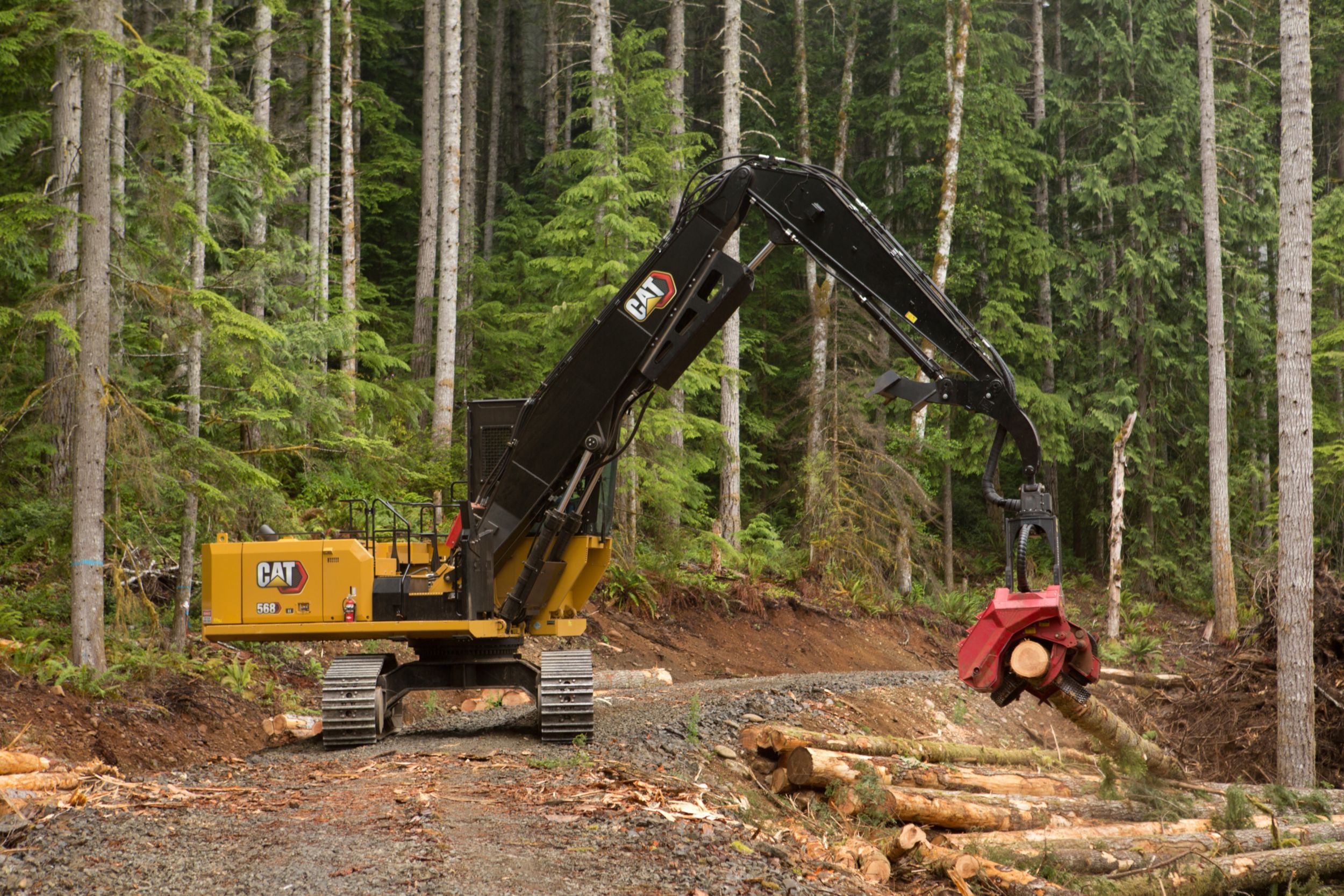

The Cat® FM568 is the ultimate forestry & shovel logging weapon. With incredible swing torque, track power, lift, and stability, you can reliably produce more loads daily and increase production and profit while counting on outstanding service and support for your business.

Specifications
Us
Metric
Engine
Engine Model
Cat C9.3B
Net Power - ISO 9249
346 hp
257.9 kW
Engine Power - ISO 14396
347 hp
259 kW
Net Power - ISO 9249 (DIN)
351 hp (metric)
351 hp (metric)
Engine Power - ISO 14396 (DIN)
352 hp (metric)
352 hp (metric)
Bore
4.53 in
115 mm
Stroke
5.87 in
149 mm
Displacement
567.5 r/min
9.3 r/min
Biodiesel Capability
Up to B20¹
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Drive
Maximum Travel Speed
2.7 mile/h
4.3 km/h
Maximum Drawbar Pull
84978 lbf
378 kN
Hydraulic System
Main System - Maximum Flow
153 gal/min
581 l/min
Maximum Pressure - Equipment
5076 psi
35000 kPa
Maximum Pressure - Equipment - Lift Mode
5511 psi
38000 kPa
Maximum Pressure - Travel
5076 psi
35000 kPa
Maximum Pressure - Swing
4119 psi
28400 kPa
Swing Mechanism
Swing Speed
6.1 r/min
6.1 r/min
Maximum Swing Torque
120222 lb/ft
163 kN·m
Weights
General Forestry
106920 lb
48500 kg
Log Loader (U/U)
108690 lb
49300 kg
Service Refill Capacities
Fuel Tank
262 gal (US)
990 l
Cooling System
5 gal (US)
20 l
Engine Oil
8 gal (US)
32 l
Swing Drive
3 gal (US)
10.5 l
Final Drive - Each
3 gal (US)
9.5 l
Hydraulic System - Including Tank
101 gal (US)
383 l
Hydraulic Tank
49 gal (US)
185 l
DEF Tank
21 gal (US)
80 l
Working Ranges
Max Reach at Stick Nose at Ground Level - General Forestry Road Builder
460 in
11690 mm
Max Reach at Grapple Mount on Heel at Ground Level - Log Loader Under/Under
509 in
12930 mm
Dimensions
Note (1)
General Forestry
Shipping Height - Tilted Cab
159 in
4030 mm
Handrail Height
138 in
3510 mm
Length: General Forestry - Boom Stretched Out
607 in
15430 mm
Length: Log Loader - Boom Stretched Out
667 in
16930 mm
Tail Swing Radius
149 in
3790 mm
Counterweight Clearance
59 in
1500 mm
Ground Clearance
30 in
760 mm
Track Length
216 in
5490 mm
Track Length to Center of Rollers
175 in
4450 mm
Track Gauge
115 in
2920 mm
Transport Width
144 in
3650 mm
Air Conditioning System
Note (1)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.1 (22"/48" Riser CAB)/2.2 (72" Riser CAB) kg of refrigerant, which as a CO2 equivalent of 3.003/3.146 metric tonnes.
Standard/Optional

Standard Equipment

CAB
CAT TECHNOLOGIES
ELECTRICAL SYSTEM
ENGINE
HYDRAULIC SYSTEM
SAFETY AND SECURITY
SERVICE AND MAINTENANCE
UNDERCARRIAGE AND STRUCTURES

Optional Equipment

BOOMS AND STICKS
CAB
ELECTRICAL SYSTEM
ENGINE
HYDRAULIC SYSTEM
SAFETY AND SECURITY
UNDERCARRIAGE AND STRUCTURES
