CP11 GC Vibratory Soil Compactor

Video

Product Description

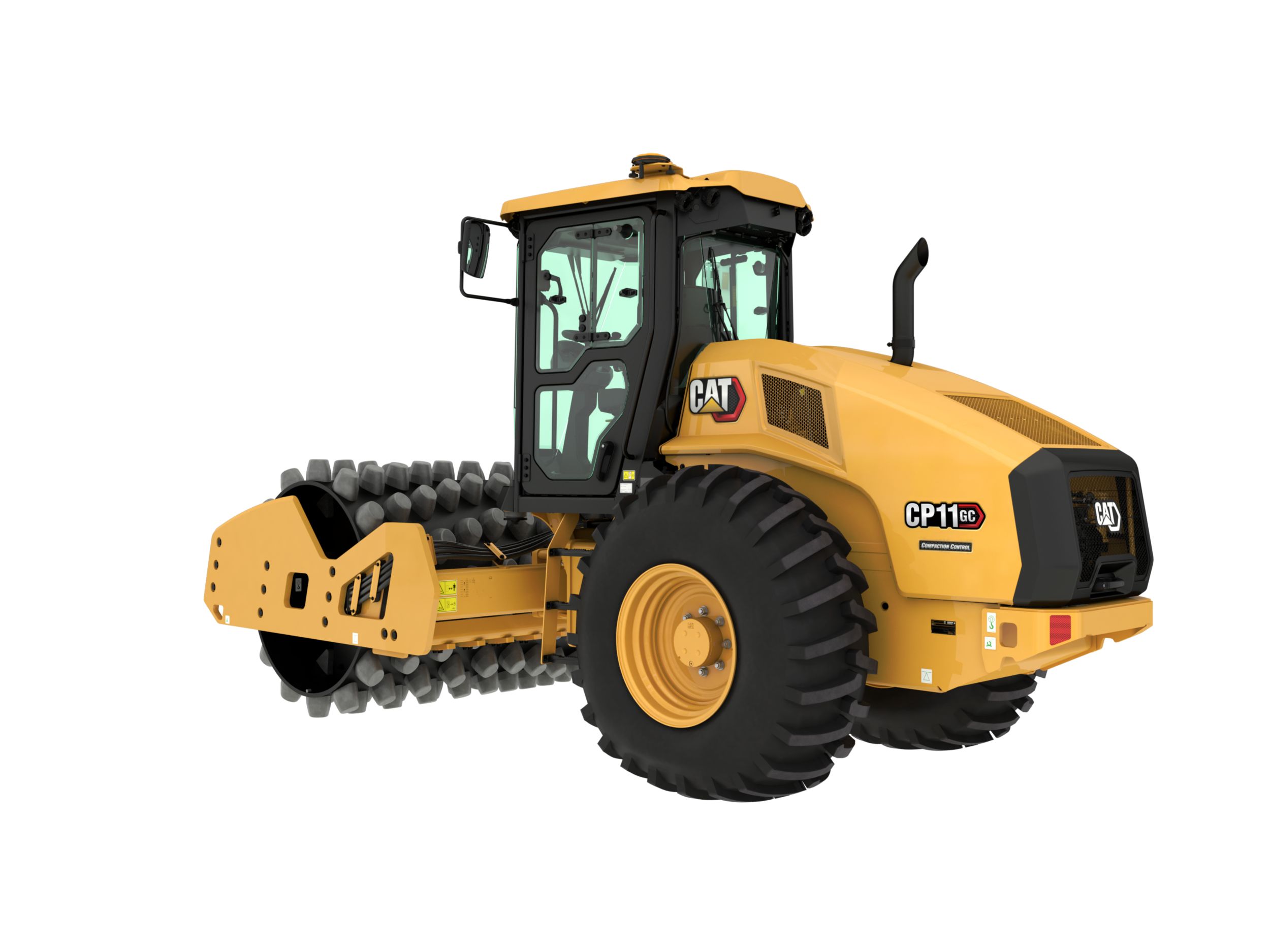

The Cat® CP11 GC Vibratory Soil Compactor features a padfoot drum and is ideally suited for cohesive and semi-cohesive soil applications. A reliable vibratory system, exceptional operator comfort and ease of use deliver dependable, economical production with performance that exceeds expectations.

Specifications
Us
Metric
Engine
Gross Power
122.9 HP
91.7 kW
Engine Power - ISO 14396
121 HP
90 kW
Net Power - ISO 9249
112.2 HP
83.7 kW
Net Power - SAE J1349
111.2 HP
82.9 kW
Note (1)
Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Engine Model
Cat® C3.6
Emissions
U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V
Stroke
4.7 in
120 mm
Bore
3.9 in
98 mm
Weights
Operating Weight - With Cab
25109 lb
11389 kg
Operating Weight - With ROPS/FOPS Canopy
24769 lb
11235 kg
Weight - Drum with Cab
14084 lb
6388 kg
Weight - Drum with ROPS/FOPS Canopy
13988 lb
6345 kg
Note (1)
Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning.
Vibratory System
Nominal Amplitude - High
0.071 in
1.8 mm
Nominal Amplitude - Low
0.035 in
0.89 mm
Centrifugal Force - Maximum
55932 lb
249 kN
Centrifugal Force - Minimum
33249 lb
148 kN
Dimensions
Compaction Width
84 in
2134 mm
Overall Length
18.7 ft
5.7 m
Overall Width
7.5 ft
2.3 m
Maximum Height
9.8 ft
3 m
Drum Diameter - Over Pads
60.9 in
1549 mm
Wheel Base
9.8 ft
3 m
Operating Specifications
Ground Clearance
20.3 in
516 mm
Curb Clearance
19.5 in
496 mm
Turning Radius - Inside Drum Edge
12.7 ft
3.9 m
Travel Speed - Maximum
6.8 mile/h
11 km/h
Service Refill Capacities
Fuel Tank Capacity
56.3 gal (US)
213 l
DEF Tank
5 gal (US)
19 l
Cooling System
4.9 gal (US)
18.5 l
Engine Oil - With Filter
3.1 gal (US)
11.6 l
Eccentric Weight Housings (combined)
6.9 gal (US)
26 l
Axle and Final Drives
2.6 gal (US)
10 l
Hydraulic Tank
6.1 gal (US)
23 l
Sustainability
Recyclability
97%
Standard/Optional

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
ELECTRICAL
OTHER

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
TECHNOLOGY SOLUTIONS
POWERTRAIN
OTHER
