CB4.4 Utility Compactor

Product Description

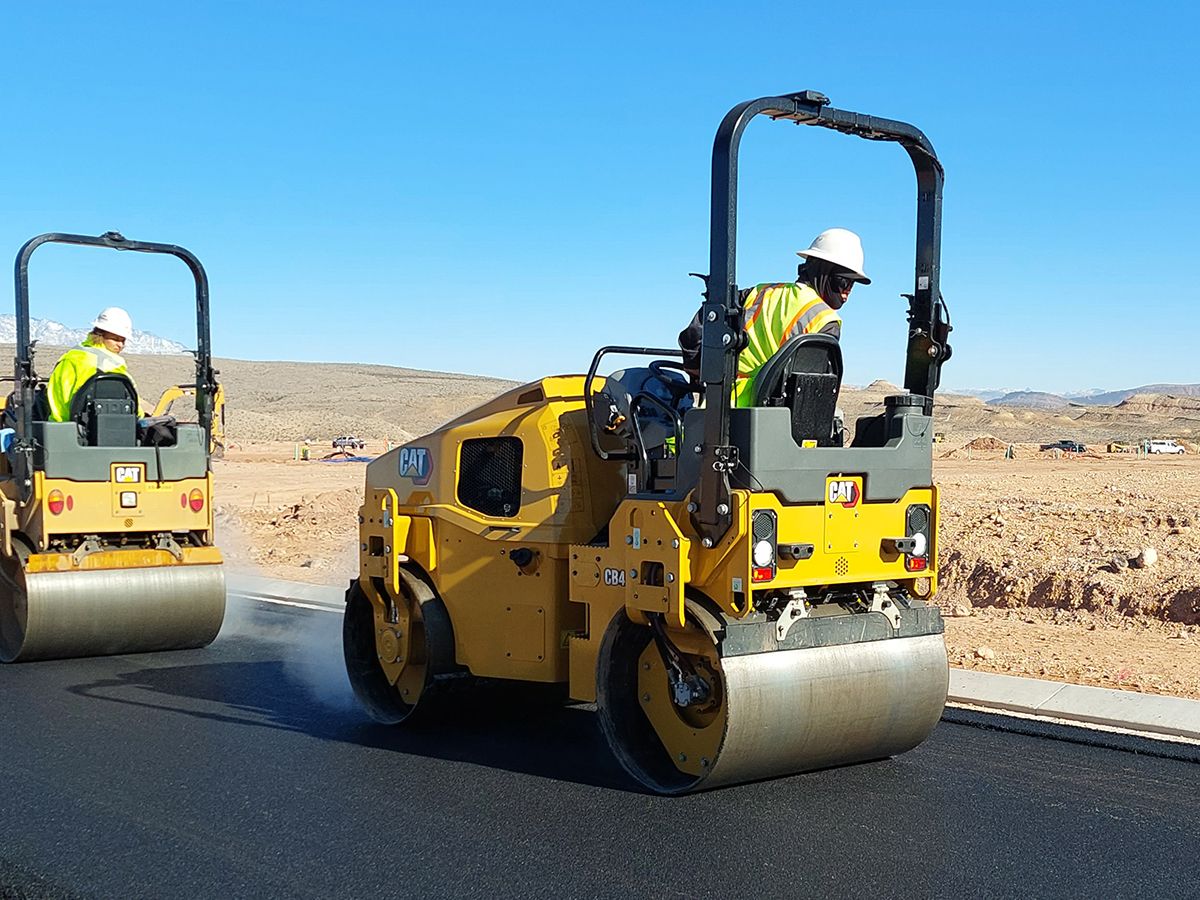

The CB4.4 is a 3-5 metric ton compactor with 800 mm (31.5 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Specifications
Us
Metric
Weights
Standard Operating Weight with ROPS
8362 lb
3801 kg
Maximum Weight at Rear Drum
4380 lb
1991 kg
Maximum Weight at Front Drum
3982 lb
1810 kg
Maximum Operating Weight with ROPS
9885 lb
4493 kg
Static Linear Load
72.2 lb/in
12.93 kg/cm
Dimensions
Compaction Width
55.1 in
1400 mm
Overall Length
112.3 in
2853 mm
Overall Width
59.1 in
1500 mm
Drum Width
55.1 in
1400 mm
Drum Diameter
31.5 in
800 mm
Wheel Base
80.7 in
2050 mm
Height - ROPS
104.7 in
2660 mm
Engine
Gross Power
48.2 HP
36 kW
Engine Model
C1.7T
Net Power - ISO 9249
47.6 HP
35.5 kW
Operating Specifications
Standard Compaction Width
55.1 in
1400 mm
Drum Offset
2 in
50 mm
Curb Clearance
19.6 in
499 mm
Ground Clearance
11.2 in
284 mm
Travel Speed - Maximum
8.1 mile/h
13 km/h
Turning Radius - Inside Drum Edge
113.2 in
2876 mm
Turning Radius - Outside Drum Edge
168.3 in
4276 mm
Vibratory System
Frequency
55/45 Hz (3300/2700 vpm)
Nominal Amplitude - High
0.019 in
0.49 mm
Centrifugal Force - Maximum
7828 lb/ft
34.82 kN
Service Refill Capacities
Fuel Tank Capacity
21.43 gal (US)
81 l
Water Spray Tank Capacity
79 gal (US)
300 l
Standard/Optional

Standard Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER

Optional Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER
