CB2.9 Utility Compactor

360 View

Product Description

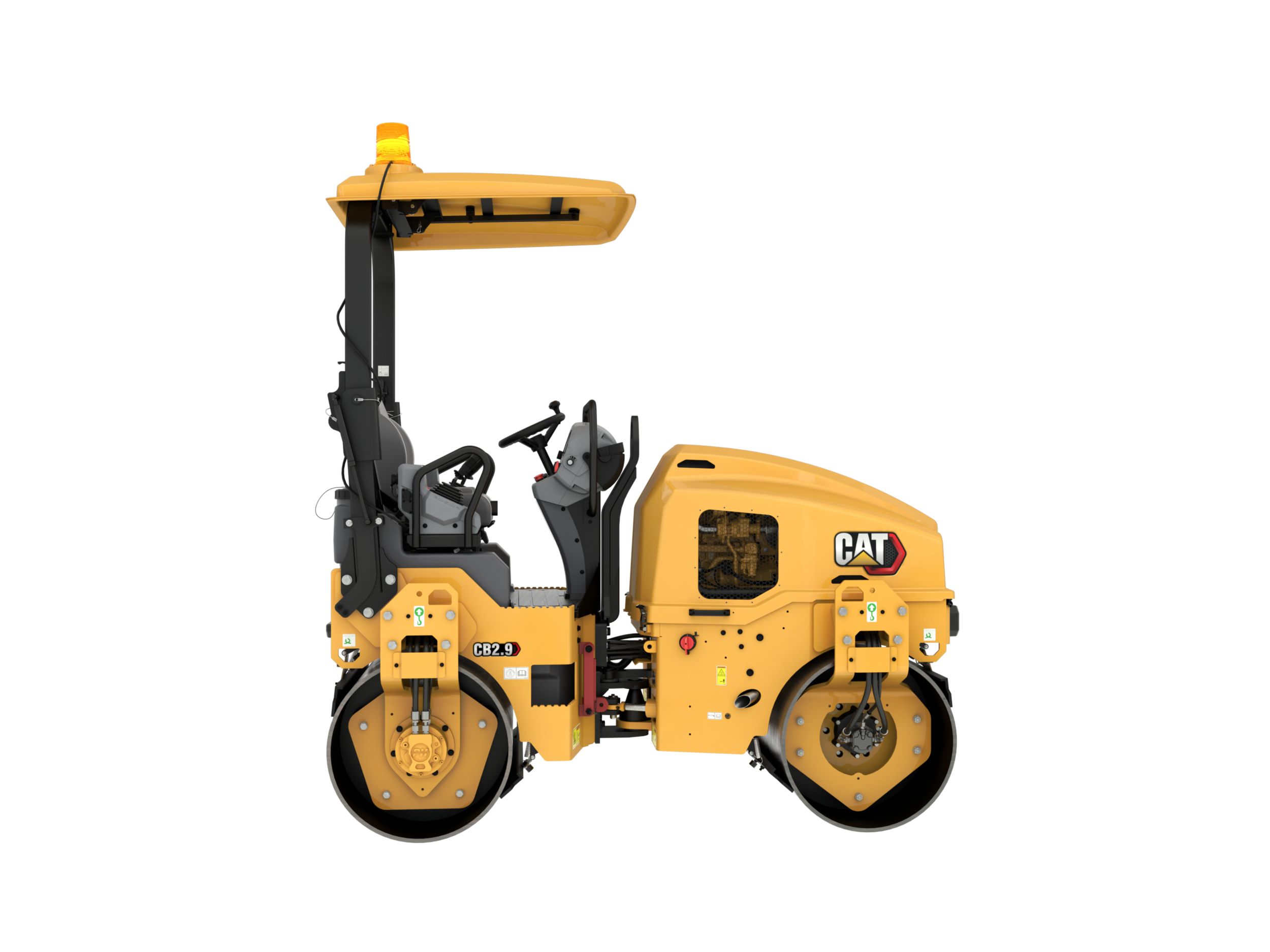

The CB2.9 is a 2.9 to 3 metric ton compactor with 1300 mm (51 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Specifications
Us
Metric
Weights
Standard Operating Weight with ROPS
6415 lb
2916 kg
Maximum Weight at Front Drum
3060 lb
1391 kg
Maximum Operating Weight with ROPS
6415 lb
2916 kg
Maximum Operating Weight with Cab
6415 lb
2916 kg
Maximum Weight at Rear Drum
3355 lb
1525 kg
Static Linear Load
59.8 lb/in
13.9 kg/cm
Dimensions
Compaction Width
51.2 in
1300 mm
Operating Specifications
Static Linear Load
59.8 lb/in
13.9 kg/cm
Turning Radius - Inside Drum Edge
98 in
2490 mm
Travel Speed - Maximum
7.5 mile/h
12 km/h
Ground Clearance
11.2 in
285 mm
Turning Radius - Outside Drum Edge
149.2 in
3790 mm
Curb Clearance
17.8 in
453 mm
Drum Offset
2 in
50 mm
Engine
Gross Power
48.2 HP
36 kW
Net Power - ISO 9249
47.6 HP
35.5 kW
Engine Model
C1.7T
Dimensions
Drum Diameter
28.3 in
720 mm
Overall Length
99.2 kg/cm
2520 mm
Wheel Base
70.9 in
1800 mm
Overall Width
55.6 in
1412 mm
Height - ROPS
70.8 in
1799 mm
Drum Width
51.2 in
1300 mm
Vibratory System
Frequency
3840 VPM
64 Hz
Nominal Amplitude - High
0.02 in
0.5 mm
Centrifugal Force - Maximum
8109 lb/ft
36 kN
Service Refill Capacities
Water Spray Tank Capacity
52.8 gal (US)
200 l
Fuel Tank Capacity
14.37 gal (US)
55 l
Operating Specifications
Speed Range
12 km/hr 7.5 mph
Standard/Optional

Standard Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER

Optional Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER
