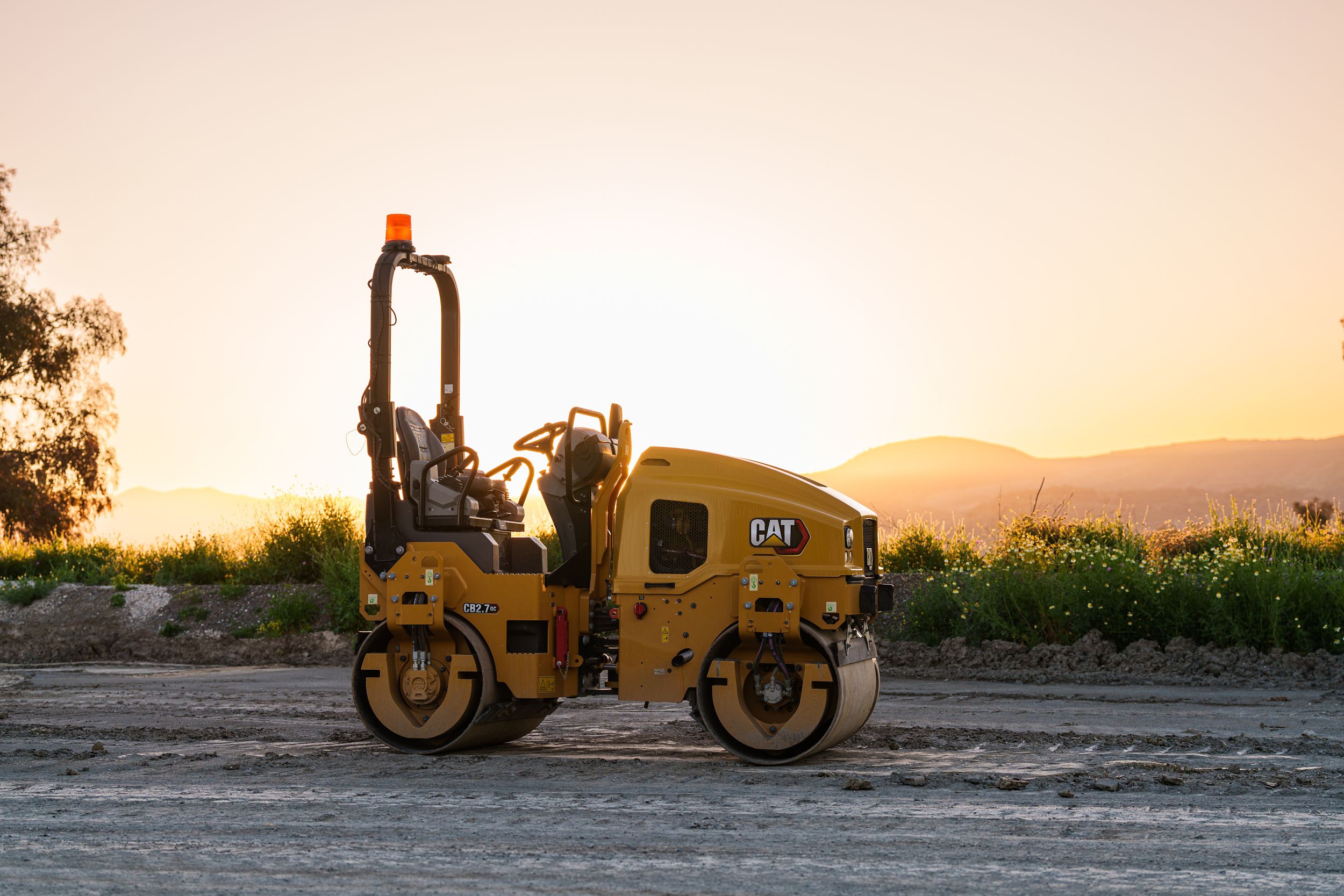

CB2.7 GC Utility Compactor

Product Description

The CB2.7 GC is a 2.7 metric ton machine with 1000 mm (39 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.

Specifications
Us
Metric
Weights
Standard Operating Weight with ROPS
5936 lb
2698 kg
Maximum Operating Weight with ROPS
7036 lb
3198 kg
Maximum Weight at Rear Drum
3075 lb
1398 kg
Maximum Weight at Front Drum
2861 lb
1301 kg
Dimensions
Compaction Width
47.2 in
1200 mm
Operating Specifications
Curb Clearance
17.8 in
453 mm
Drum Offset
2 in
50 mm
Ground Clearance
11.2 in
285 mm
Static Linear Load
66.2 lb/in
11.85 kg/cm
Travel Speed - Maximum
5.8 mile/h
9.4 km/h
Turning Radius - Inside Drum Edge
100 in
2540 mm
Turning Radius - Outside Drum Edge
147.2 in
3740 mm
Engine
Gross Power
24.6 HP
18.4 kW
Engine Model
C1.7T
Net Power - ISO 9249
24.4 HP
18.2 kW
Dimensions
Drum Diameter
28.3 in
720 mm
Drum Width
47.2 in
1200 mm
Height - ROPS
102.2 in
2595 mm
Overall Length
102.2 in
2596 mm
Overall Width
51.7 in
1312 mm
Wheel Base
70.9 in
1800 mm
Vibratory System
Centrifugal Force - Maximum
6968.8 lb
31 kN
Nominal Amplitude - High
0.02 in
0.52 mm
Service Refill Capacities
Water Spray Tank Capacity
52.8 gal (US)
200 l
Fuel Tank Capacity
14.37 gal (US)
55 l
Standard/Optional

Standard Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER

Optional Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER
